IFSC0806AZER2R2M01
Dale / Vishay

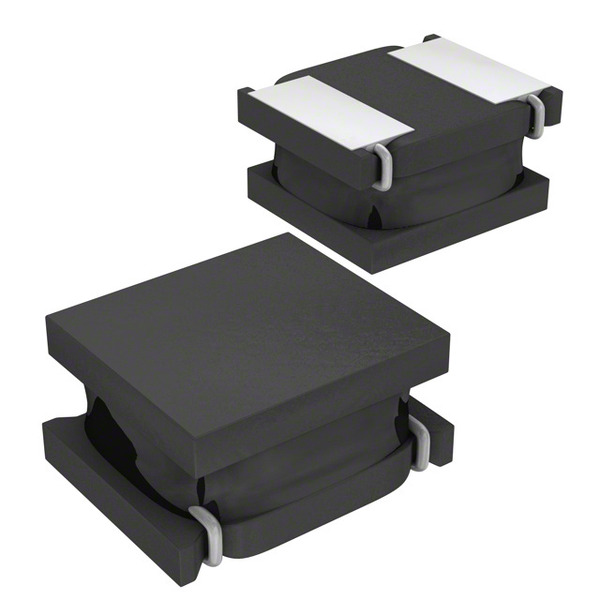

Images are for reference only.
See Product Specifications for product details.
Buy IFSC0806AZER2R2M01 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy IFSC0806AZER2R2M01 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | IFSC0806AZER2R2M01 |
|---|---|
| Manufacturer | Dale / Vishay |
| Description | FIXED IND 2.2UH 1.3A 236 MOHM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $0.77 | $0.672 | $0.48 | $0.403 | $0.326 | |
Specifications
Data sheet
| Type: | - |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Shielding: | Shielded |
| Series: | IFSC-0806AZ-01 |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Original-Reel® |
| Package / Case: | Nonstandard |
| Other Names: | 541-1384-6 |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | - |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 2.2µH |
| Height - Seated (Max): | 0.039" (1.00mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 2.2µH Shielded Inductor 1.3A 236 mOhm Max Nonstandard |
| DC Resistance (DCR): | 236 mOhm Max |
| Current Rating: | 1.3A |
| Current - Saturation: | 1.4A |
| Email: | info@cjjhk.com |
Introduce
We can supply IFSC0806AZER2R2M01, use the request quote form to request IFSC0806AZER2R2M01 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IFSC0806AZER2R2M01.The price and lead time for IFSC0806AZER2R2M01 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IFSC0806AZER2R2M01.We look forward to working with you to establish long-term relations of cooperation
