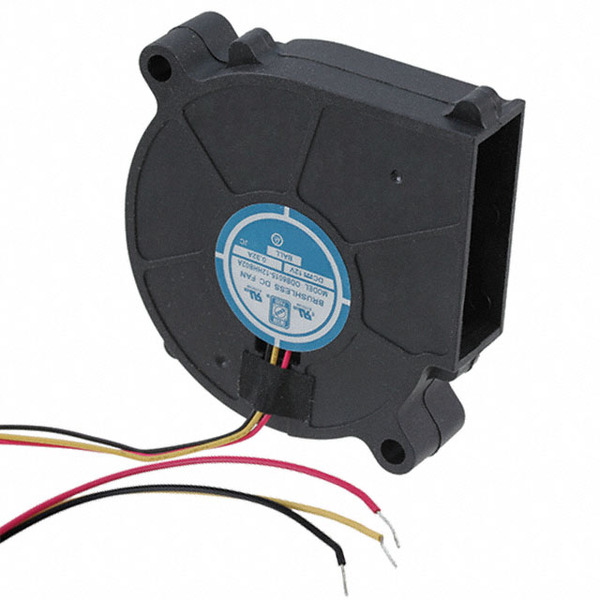

ODB6015-12HHB02A
Orion Fans
Images are for reference only.
See Product Specifications for product details.
Buy ODB6015-12HHB02A with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ODB6015-12HHB02A with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ODB6015-12HHB02A |
|---|---|
| Manufacturer | Orion Fans |
| Description | FAN BLOWER 60X15MM 12VDC WIRE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | ||
|---|---|---|---|---|---|
| $11.09 | $10.56 | $9.90 | |||
| 100 pcs | 250 pcs | 500 pcs | |||
| $8.778 | $8.25 | $8.085 | |||
Specifications
Data sheet
| Width: | 15.20mm |
|---|---|
| Weight: | 0.077 lb (34.93g) |
| Voltage Range: | 7 ~ 13.2VDC |
| Voltage - Rated: | 12VDC |
| Termination: | 3 Wire Leads |
| Static Pressure: | 0.800 in H2O (199.3 Pa) |
| Size / Dimension: | Rectangular/Rounded - 57.25mm L x 50.37mm H |
| Series: | ODB6015 |
| RPM: | 5000 RPM |
| Power (Watts): | 3.84W |
| Other Names: | 1053-1683 ODB6015-12HHB02AX |
| Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
| Noise: | 44.0 dB |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Frame: | Polybutylene Terephthalate (PBT) |
| Material - Blade: | Polybutylene Terephthalate (PBT) |
| Manufacturer Standard Lead Time: | 22 Weeks |
| Lifetime @ Temp.: | 70000 Hrs @ 40°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | Locked Rotor Sensor |
| Fan Type: | Blower |
| Current Rating: | 0.200A |
| Bearing Type: | Ball |
| Approvals: | cURus, TUV |
| Air Flow: | 7.4 CFM (0.207m³/min) |
| Email: | info@cjjhk.com |
Introduce
We can supply ODB6015-12HHB02A, use the request quote form to request ODB6015-12HHB02A pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ODB6015-12HHB02A.The price and lead time for ODB6015-12HHB02A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ODB6015-12HHB02A.We look forward to working with you to establish long-term relations of cooperation
