IPG20N10S436AATMA1
International Rectifier (Infineon Technologies)

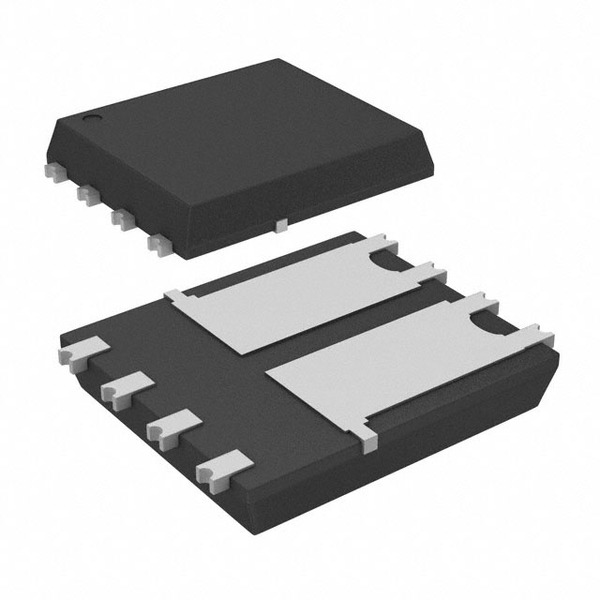

Images are for reference only.
See Product Specifications for product details.
Buy IPG20N10S436AATMA1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy IPG20N10S436AATMA1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | IPG20N10S436AATMA1 |
|---|---|
| Manufacturer | International Rectifier (Infineon Technologies) |
| Description | MOSFET 2N-CH 8TDSON |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 5000 pcs | ||||
|---|---|---|---|---|---|
| $0.598 | |||||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 3.5V @ 16µA |
|---|---|
| Supplier Device Package: | PG-TDSON-8-10 |
| Series: | Automotive, AEC-Q101, OptiMOS™ |
| Rds On (Max) @ Id, Vgs: | 36 mOhm @ 17A, 10V |
| Power - Max: | 43W |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 8-PowerVDFN |
| Other Names: | SP001102930 |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 990pF @ 25V |
| Gate Charge (Qg) (Max) @ Vgs: | 15nC @ 10V |
| FET Type: | 2 N-Channel (Dual) |
| FET Feature: | Standard |
| Drain to Source Voltage (Vdss): | 100V |
| Detailed Description: | Mosfet Array 2 N-Channel (Dual) 100V 20A 43W Surface Mount PG-TDSON-8-10 |
| Current - Continuous Drain (Id) @ 25°C: | 20A |
| Email: | info@cjjhk.com |
Introduce
We can supply IPG20N10S436AATMA1, use the request quote form to request IPG20N10S436AATMA1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number IPG20N10S436AATMA1.The price and lead time for IPG20N10S436AATMA1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# IPG20N10S436AATMA1.We look forward to working with you to establish long-term relations of cooperation
