B82801C2245A200
EPCOS

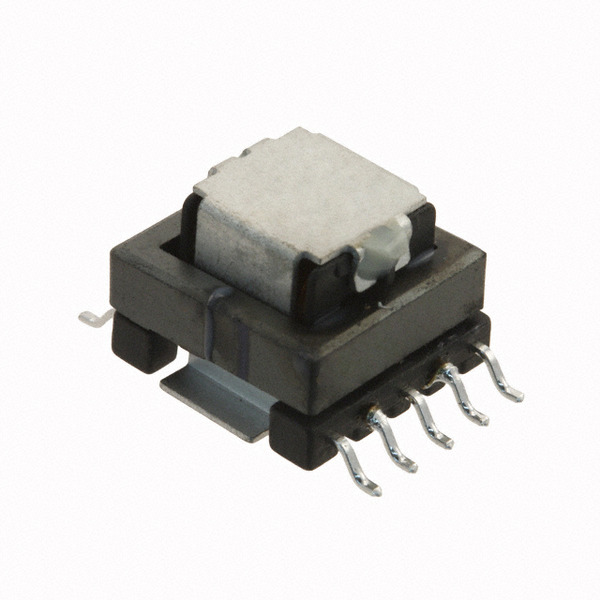

Images are for reference only.
See Product Specifications for product details.
Buy B82801C2245A200 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy B82801C2245A200 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | B82801C2245A200 |
|---|---|
| Manufacturer | EPCOS |
| Description | Current Transformer 1: 200 1500VAC 0.00028Ohm Prim. DCR 2.9Ohm Sec. DCR 40000mA Surface Mount |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $2.467 | $2.227 | $2.009 | $1.965 | ||
Specifications
Data sheet
| Weight: | 0.011 lb (4.99g) |
|---|---|
| Type: | Invasive |
| Turns Ratio - Primary:Secondary: | 1:200 |
| Termination Style: | Gull Wing |
| Size / Dimension: | 0.560" L x 0.530" W (14.22mm x 13.46mm) |
| Series: | B82801C |
| Ratings: | - |
| Packaging: | Cut Tape (CT) |
| Other Names: | 495-4444-1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 22 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 22.4mH |
| Height - Seated (Max): | 0.394" (10.00mm) |
| Frequency Range: | 50kHz ~ 500kHz |
| Energy Time (E.T.): | - |
| Detailed Description: | 1:200 Current Sense Transformer 50kHz ~ 500kHz 0.28 mOhm Primary, 2.9 Ohm Secondary 22.4mH Surface Mount |
| DC Resistance (DCR): | 0.28 mOhm Primary, 2.9 Ohm Secondary |
| Current Ratio: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply B82801C2245A200, use the request quote form to request B82801C2245A200 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number B82801C2245A200.The price and lead time for B82801C2245A200 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# B82801C2245A200.We look forward to working with you to establish long-term relations of cooperation
