B82801C0145A050
EPCOS

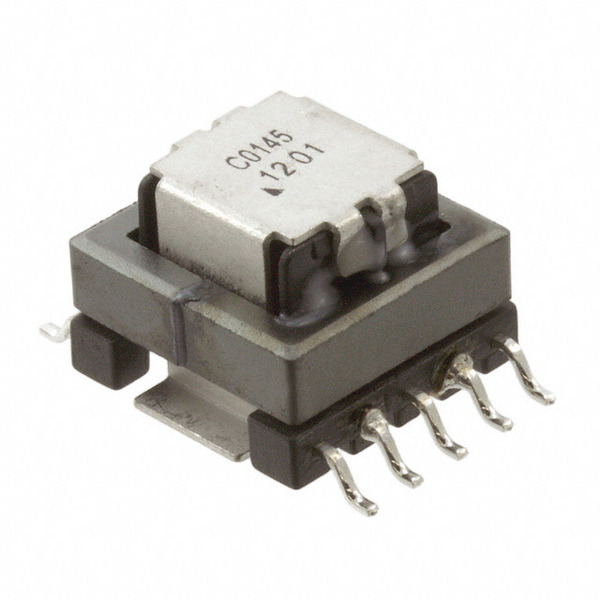

Images are for reference only.
See Product Specifications for product details.
Buy B82801C0145A050 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy B82801C0145A050 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | B82801C0145A050 |
|---|---|
| Manufacturer | EPCOS |
| Description | CURR SENSE XFMR 1:50 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 200 pcs | 400 pcs | 600 pcs | 1000 pcs | 5000 pcs |
|---|---|---|---|---|---|
| $2.295 | $2.228 | $2.16 | $2.093 | $1.924 | |
Specifications
Data sheet
| Weight: | 0.011 lb (4.99g) |
|---|---|
| Type: | Invasive |
| Turns Ratio - Primary:Secondary: | 1:50 |
| Termination Style: | Gull Wing |
| Size / Dimension: | 0.560" L x 0.530" W (14.22mm x 13.46mm) |
| Series: | B82801C |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 495-4441-2 B82801C 145A 50 B82801C145A50 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 22 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 1.4mH |
| Height - Seated (Max): | 0.394" (10.00mm) |
| Frequency Range: | 50kHz ~ 500kHz |
| Energy Time (E.T.): | - |
| Detailed Description: | 1:50 Current Sense Transformer 50kHz ~ 500kHz 0.28 mOhm Primary, 400 mOhm Secondary 1.4mH Surface Mount |
| DC Resistance (DCR): | 0.28 mOhm Primary, 400 mOhm Secondary |
| Current Ratio: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply B82801C0145A050, use the request quote form to request B82801C0145A050 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number B82801C0145A050.The price and lead time for B82801C0145A050 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# B82801C0145A050.We look forward to working with you to establish long-term relations of cooperation
