B82801B0803A020
EPCOS

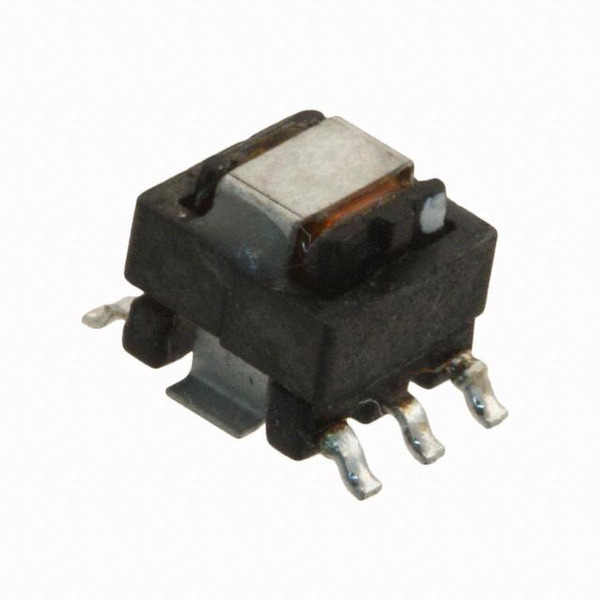

Images are for reference only.
See Product Specifications for product details.
Buy B82801B0803A020 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy B82801B0803A020 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | B82801B0803A020 |
|---|---|
| Manufacturer | EPCOS |
| Description | CURR SENSE XFMR 1:20 SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 900 pcs | 1800 pcs | 6300 pcs | ||
|---|---|---|---|---|---|
| $1.631 | $1.444 | $1.325 | |||
Specifications
Data sheet
| Weight: | 0.014 oz (0.4g) |
|---|---|
| Type: | Invasive |
| Turns Ratio - Primary:Secondary: | 1:20 |
| Termination Style: | Gull Wing |
| Size / Dimension: | 0.280" L x 0.320" W (7.11mm x 8.13mm) |
| Series: | B82801B |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Other Names: | 495-4043-2 B82801B 803A 20 B82801B803A20 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 22 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 80µH |
| Height - Seated (Max): | 0.200" (5.08mm) |
| Frequency Range: | 50kHz ~ 1MHz |
| Energy Time (E.T.): | - |
| Detailed Description: | 1:20 Current Sense Transformer 50kHz ~ 1MHz 0.8 mOhm Primary, 400 mOhm Secondary 80µH Surface Mount |
| DC Resistance (DCR): | 0.8 mOhm Primary, 400 mOhm Secondary |
| Current Ratio: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply B82801B0803A020, use the request quote form to request B82801B0803A020 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number B82801B0803A020.The price and lead time for B82801B0803A020 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# B82801B0803A020.We look forward to working with you to establish long-term relations of cooperation
