VLF12060T-101M1R9
TDK Corporation

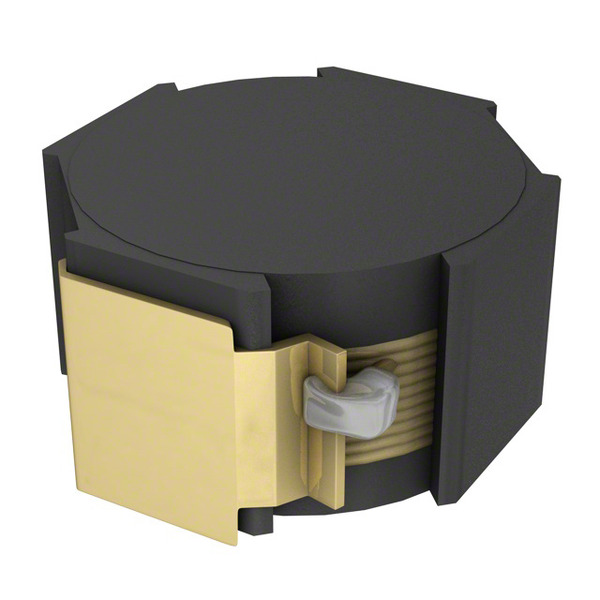

Images are for reference only.
See Product Specifications for product details.
Buy VLF12060T-101M1R9 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy VLF12060T-101M1R9 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | VLF12060T-101M1R9 |
|---|---|
| Manufacturer | TDK |
| Description | Inductor Power Shielded Wirewound 100uH 20% 100KHz Ferrite 2A 152mOhm DCR Blister T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.484 | $0.437 | $0.394 | $0.386 | ||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.472" L x 0.461" W (12.00mm x 11.70mm) |
| Shielding: | Shielded |
| Series: | VLF |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Other Names: | 445-3599-2 VLF12060T101M1R9 |
| Operating Temperature: | -40°C ~ 105°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Ferrite |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 100µH |
| Height - Seated (Max): | 0.236" (6.00mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 100µH Shielded Wirewound Inductor 1.9A 152 mOhm Max Nonstandard |
| DC Resistance (DCR): | 152 mOhm Max |
| Current Rating: | 1.9A |
| Current - Saturation: | 1.9A |
| Email: | info@cjjhk.com |
Introduce
We can supply VLF12060T-101M1R9, use the request quote form to request VLF12060T-101M1R9 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VLF12060T-101M1R9.The price and lead time for VLF12060T-101M1R9 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VLF12060T-101M1R9.We look forward to working with you to establish long-term relations of cooperation
