ZW10F15CD1
Honeywell Sensing and Productivity Solutions

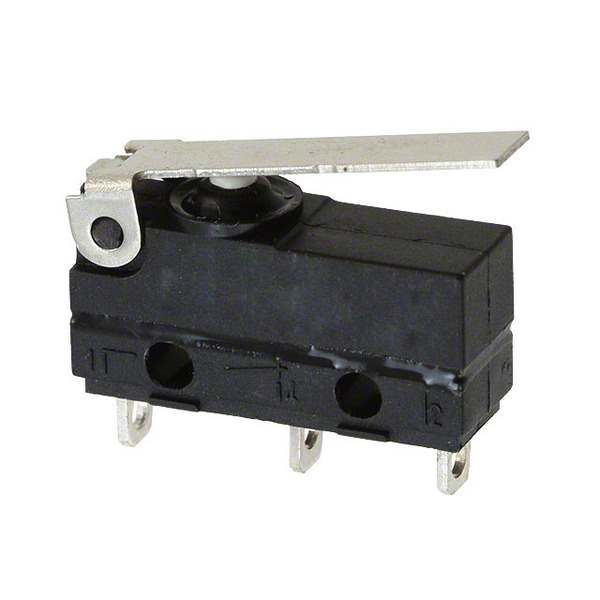

Images are for reference only.
See Product Specifications for product details.
Buy ZW10F15CD1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ZW10F15CD1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ZW10F15CD1 |
|---|---|
| Manufacturer | Honeywell |
| Description | Sealed Sub-Miniature Basic Switch; SPDT; 125/250Vac; .1A; Straight Lever |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $11.537 | $10.414 | $9.393 | $9.189 | ||
Specifications
Data sheet
| Voltage Rating - AC: | 125V |
|---|---|
| Termination Style: | Solder Lug |
| Switch Function: | On-Mom |
| Series: | ZW |
| Release Force: | 13gf |
| Pretravel: | 0.188" (4.8mm) |
| Packaging: | Bulk |
| Overtravel: | 0.039" (1.0mm) |
| Other Names: | 480-3633 ZW10F15CD1-Z ZW10F15CD1Z |
| Operating Temperature: | -40°C ~ 120°C |
| Operating Position: | 0.345" (8.8mm) |
| Operating Force: | 66gf |
| Mounting Type: | Chassis Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mechanical Life: | 1,000,000 Cycles |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | IP00 |
| Features: | - |
| Electrical Life: | 10,000 Cycles |
| Differential Travel: | 0.028" (0.7mm) |
| Current Rating: | 100mA (AC) |
| Circuit: | SPDT |
| Actuator Type: | Lever, Straight |
| Email: | info@cjjhk.com |
Introduce
We can supply ZW10F15CD1, use the request quote form to request ZW10F15CD1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ZW10F15CD1.The price and lead time for ZW10F15CD1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ZW10F15CD1.We look forward to working with you to establish long-term relations of cooperation
