ZCYS51R5-M8PT-01
TDK Corporation

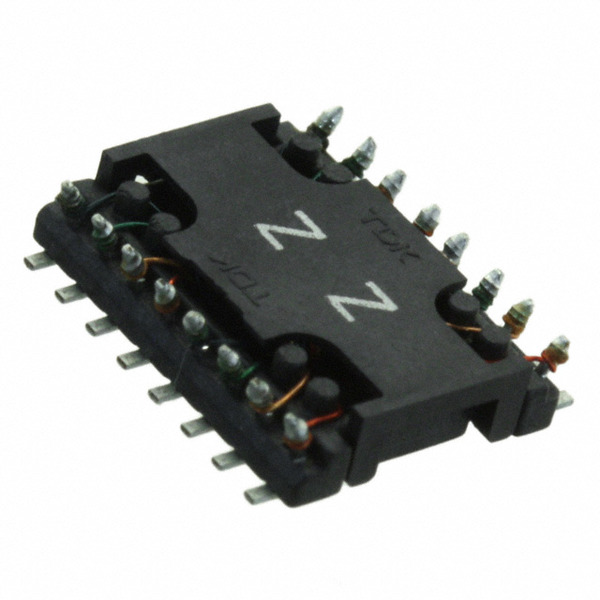

Images are for reference only.
See Product Specifications for product details.
Buy ZCYS51R5-M8PT-01 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ZCYS51R5-M8PT-01 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ZCYS51R5-M8PT-01 |
|---|---|
| Manufacturer | TDK |
| Description | Common Mode Chokes Octal 100Ohm 100MHz to 300MHz 500mA 300mOhm DCR SMD T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.36 | $0.325 | $0.293 | $0.286 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 50V |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.433" L x 0.370" W (11.00mm x 9.40mm) |
| Series: | ZCYS |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | - |
| Other Names: | 445-6699-2 ZCYS51R5M8PT01 |
| Operating Temperature: | -25°C ~ 85°C |
| Number of Lines: | 8 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Impedance @ Frequency: | 100 Ohms @ 100MHz |
| Height (Max): | 0.098" (2.50mm) |
| Filter Type: | Signal Line |
| Features: | - |
| Detailed Description: | 8 Line Common Mode Choke Surface Mount 100 Ohms @ 100MHz 500mA DCR 300 mOhm |
| DC Resistance (DCR) (Max): | 300 mOhm |
| Current Rating (Max): | 500mA |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply ZCYS51R5-M8PT-01, use the request quote form to request ZCYS51R5-M8PT-01 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ZCYS51R5-M8PT-01.The price and lead time for ZCYS51R5-M8PT-01 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ZCYS51R5-M8PT-01.We look forward to working with you to establish long-term relations of cooperation
