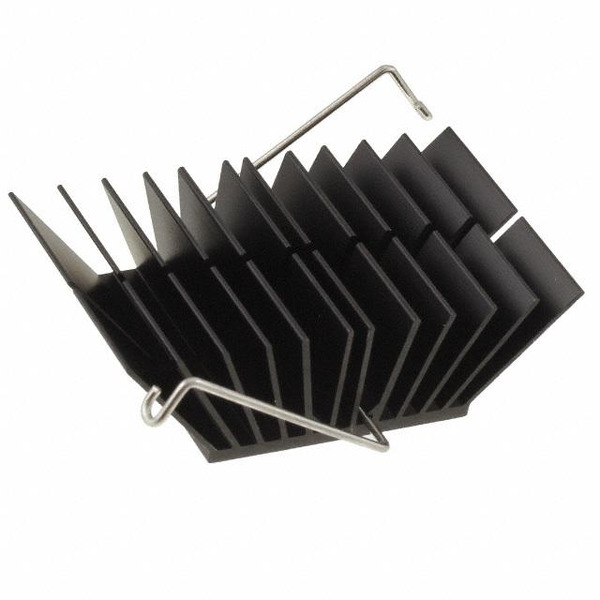

WAVE-366-175
Wakefield-Vette
Images are for reference only.
See Product Specifications for product details.
Buy WAVE-366-175 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy WAVE-366-175 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | WAVE-366-175 |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | ANCHOR HEATSINK 36.6X36.6X17.5MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $2.17 | $2.111 | $2.054 | $1.94 | $1.826 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $1.712 | $1.655 | $1.484 | $1.455 | ||
Specifications
Data sheet
| Width: | 1.441" (36.60mm) |
|---|---|
| Type: | Board Level |
| Thermal Resistance @ Natural: | - |
| Thermal Resistance @ Forced Air Flow: | 2.55°C/W @ 200 LFM |
| Shape: | Square, Angled Fins |
| Series: | Wave 3x |
| Power Dissipation @ Temperature Rise: | - |
| Package Cooled: | BGA |
| Other Names: | 345-1539 |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Material Finish: | Black Anodized |
| Material: | Aluminum Alloy |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Length: | 1.441" (36.60mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 0.689" (17.50mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink BGA Aluminum Alloy Board Level |
| Attachment Method: | Clip |
| Email: | info@cjjhk.com |
Introduce
We can supply WAVE-366-175, use the request quote form to request WAVE-366-175 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number WAVE-366-175.The price and lead time for WAVE-366-175 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# WAVE-366-175.We look forward to working with you to establish long-term relations of cooperation
