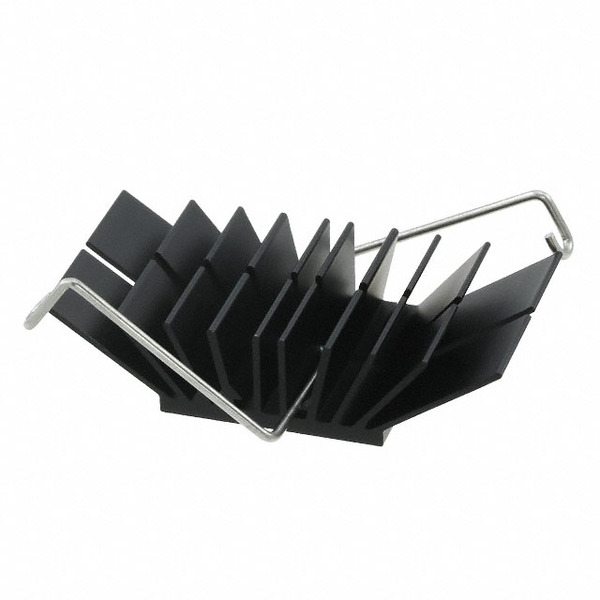

WAVE-26-12
Wakefield-Vette
Images are for reference only.
See Product Specifications for product details.
Buy WAVE-26-12 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy WAVE-26-12 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | WAVE-26-12 |
|---|---|
| Manufacturer | Wakefield-Vette |
| Description | ANCHOR HEATSINK 26X26X12MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.96 | $1.861 | $1.812 | $1.763 | $1.666 | |
| 250 pcs | 500 pcs | 1000 pcs | 5000 pcs | ||
| $1.568 | $1.47 | $1.372 | $1.323 | ||
Specifications
Data sheet
| Width: | 1.024" (26.00mm) |
|---|---|
| Type: | Board Level |
| Thermal Resistance @ Natural: | - |
| Thermal Resistance @ Forced Air Flow: | 5.21°C/W @ 200 LFM |
| Shape: | Square, Angled Fins |
| Series: | Wave 2x |
| Power Dissipation @ Temperature Rise: | - |
| Package Cooled: | BGA |
| Other Names: | 345-1531 |
| Moisture Sensitivity Level (MSL): | Not Applicable |
| Material Finish: | Black Anodized |
| Material: | Aluminum Alloy |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Length: | 1.024" (26.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height Off Base (Height of Fin): | 0.472" (12.00mm) |
| Diameter: | - |
| Detailed Description: | Heat Sink BGA Aluminum Alloy Board Level |
| Attachment Method: | Clip |
| Email: | info@cjjhk.com |
Introduce
We can supply WAVE-26-12, use the request quote form to request WAVE-26-12 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number WAVE-26-12.The price and lead time for WAVE-26-12 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# WAVE-26-12.We look forward to working with you to establish long-term relations of cooperation
