VLM13580T-R82M-D1
TDK Corporation

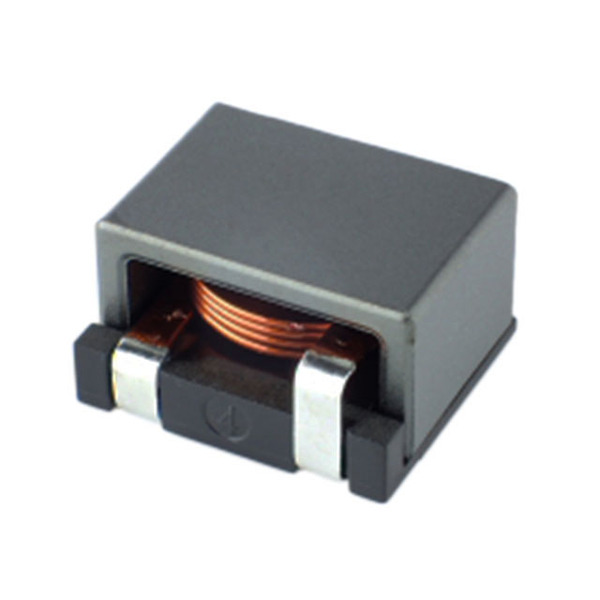

Images are for reference only.
See Product Specifications for product details.
Buy VLM13580T-R82M-D1 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy VLM13580T-R82M-D1 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | VLM13580T-R82M-D1 |
|---|---|
| Manufacturer | TDK Corporation |
| Description | FIXED IND 820NH 12.6A 2 MOHM SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 400 pcs | ||||
|---|---|---|---|---|---|
| $4.00 | |||||
Specifications
Data sheet
| Type: | Wirewound |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.531" L x 0.480" W (13.50mm x 12.20mm) |
| Shielding: | Shielded |
| Series: | VLM |
| Ratings: | AEC-Q200 |
| Q @ Freq: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Nonstandard |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Ferrite |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 100kHz |
| Inductance: | 820nH |
| Height - Seated (Max): | 0.327" (8.30mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 820nH Shielded Wirewound Inductor 12.6A 2 mOhm Max Nonstandard |
| DC Resistance (DCR): | 2 mOhm Max |
| Current Rating: | 12.6A |
| Current - Saturation: | 36A |
| Email: | info@cjjhk.com |
Introduce
We can supply VLM13580T-R82M-D1, use the request quote form to request VLM13580T-R82M-D1 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number VLM13580T-R82M-D1.The price and lead time for VLM13580T-R82M-D1 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# VLM13580T-R82M-D1.We look forward to working with you to establish long-term relations of cooperation
