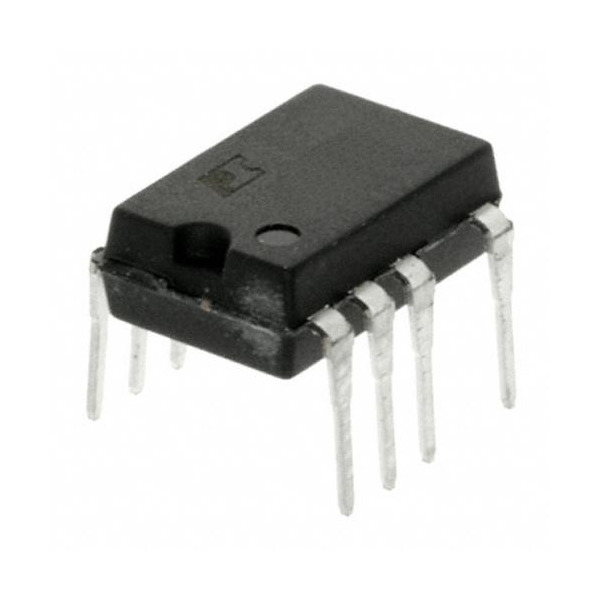

TOP252MN
Power Integrations
Images are for reference only.
See Product Specifications for product details.
Buy TOP252MN with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TOP252MN with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TOP252MN |
|---|---|
| Manufacturer | Power Integrations |
| Description | Off Line Switcher 9-Pin SDIP-C |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.834 | $0.753 | $0.679 | $0.664 | ||
Specifications
Data sheet
| Voltage - Supply (Vcc/Vdd): | - |
|---|---|
| Voltage - Breakdown: | 700V |
| Topology: | Flyback |
| Supplier Device Package: | SDIP-10C |
| Series: | TOPSwitch®-HX |
| Power (Watts): | 15W |
| Packaging: | Tube |
| Package / Case: | 10-SDIP (0.300", 7.62mm), 9 Leads |
| Output Isolation: | Isolated |
| Other Names: | 596-1201-5 |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Yes |
| Frequency - Switching: | 66kHz |
| Fault Protection: | Current Limiting, Over Temperature, Over Voltage |
| Duty Cycle: | 78% |
| Detailed Description: | Converter Offline Flyback Topology 66kHz SDIP-10C |
| Control Features: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply TOP252MN, use the request quote form to request TOP252MN pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TOP252MN.The price and lead time for TOP252MN depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TOP252MN.We look forward to working with you to establish long-term relations of cooperation
