TOP250FN
Power Integrations

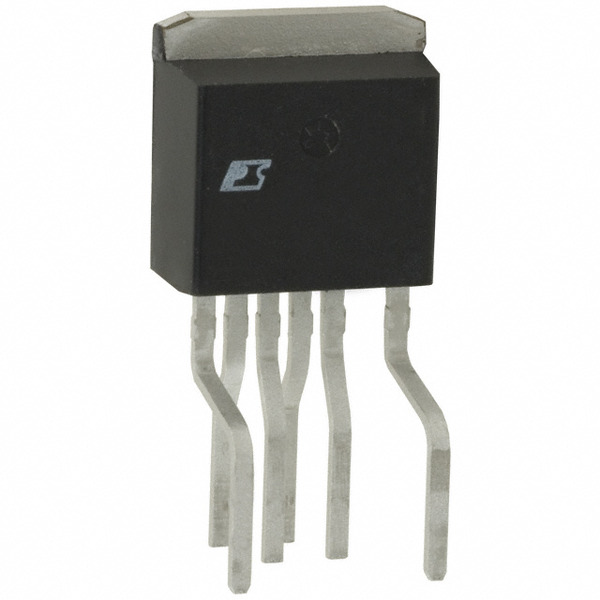

Images are for reference only.
See Product Specifications for product details.
Buy TOP250FN with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TOP250FN with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TOP250FN |
|---|---|
| Manufacturer | Power Integrations |
| Description | IC OFFLINE SWIT UVLO HV TO262 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 150 pcs | ||||
|---|---|---|---|---|---|
| $4.534 | |||||
Specifications
Data sheet
| Voltage - Supply (Vcc/Vdd): | - |
|---|---|
| Voltage - Breakdown: | 700V |
| Topology: | Flyback |
| Supplier Device Package: | TO-262-7C |
| Series: | TOPSwitch®-GX |
| Power (Watts): | 290W |
| Packaging: | Tube |
| Package / Case: | TO-262-7 (Formed Leads), 6 Leads |
| Output Isolation: | Isolated |
| Other Names: | 596-1169 TOP250FN-ND |
| Operating Temperature: | -40°C ~ 150°C (TJ) |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Yes |
| Frequency - Switching: | 66kHz ~ 132kHz |
| Fault Protection: | Current Limiting, Over Temperature, Over Voltage |
| Duty Cycle: | 66.8% |
| Detailed Description: | Converter Offline Flyback Topology 66kHz ~ 132kHz TO-262-7C |
| Control Features: | Frequency Control |
| Email: | info@cjjhk.com |
Introduce
We can supply TOP250FN, use the request quote form to request TOP250FN pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TOP250FN.The price and lead time for TOP250FN depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TOP250FN.We look forward to working with you to establish long-term relations of cooperation
