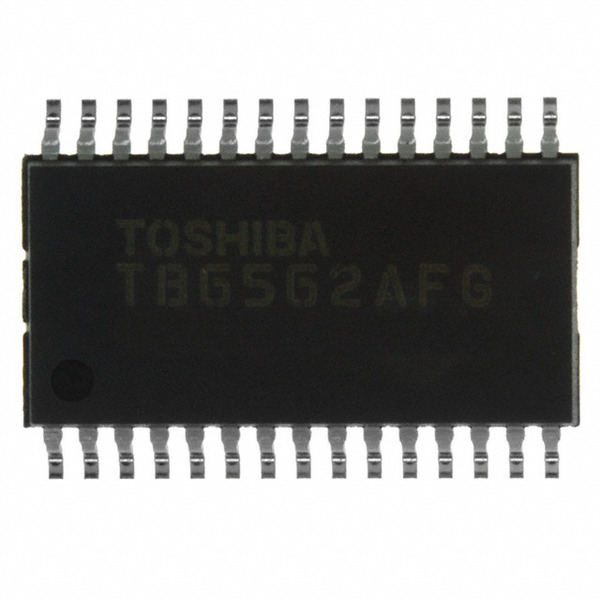

TB6562AFG,8,EL
Toshiba Semiconductor and Storage
Images are for reference only.
See Product Specifications for product details.
Buy TB6562AFG,8,EL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TB6562AFG,8,EL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TB6562AFG,8,EL |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | IC MOTOR DRIVER PAR 30SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | ||
|---|---|---|---|---|---|
| $1.652 | $1.569 | $1.51 | |||
Specifications
Data sheet
| Voltage - Supply: | 10 V ~ 34 V |
|---|---|
| Voltage - Load: | 10 V ~ 34 V |
| Technology: | DMOS |
| Supplier Device Package: | 30-SSOP |
| Step Resolution: | 1, 1/2, 1/4 |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 30-BSOP (0.295", 7.50mm Width) |
| Output Configuration: | Half Bridge (4) |
| Other Names: | TB6562AFG (O,8,EL) TB6562AFG(EL) TB6562AFG(O,8,EL) TB6562AFG(O,EL) TB6562AFG(O,EL)-ND TB6562AFG(O8EL)TR TB6562AFG(O8EL)TR-ND TB6562AFG(OEL) TB6562AFG(OEL)-ND TB6562AFG(OEL)TR TB6562AFG(OEL)TR-ND TB6562AFG8ELTR TB6562AFGO8EL TB6562AFGOELTR TB6562AFGOELTR-ND TB6562AFGTR TB6562AFGTR-ND |
| Operating Temperature: | -20°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Motor Type - Stepper: | Bipolar |
| Motor Type - AC, DC: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | Parallel |
| Function: | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description: | Bipolar Motor Driver DMOS Parallel 30-SSOP |
| Current - Output: | 1.5A |
| Applications: | General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply TB6562AFG,8,EL, use the request quote form to request TB6562AFG,8,EL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TB6562AFG,8,EL.The price and lead time for TB6562AFG,8,EL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TB6562AFG,8,EL.We look forward to working with you to establish long-term relations of cooperation
