TB6561FG,8,EL
Toshiba Semiconductor and Storage

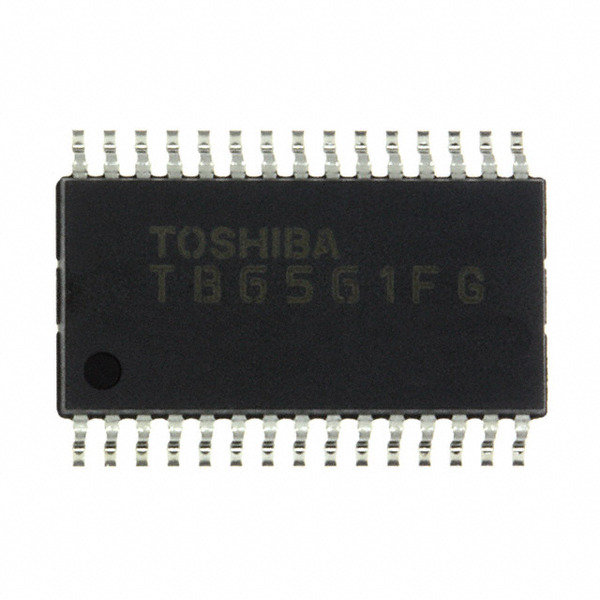

Images are for reference only.
See Product Specifications for product details.
Buy TB6561FG,8,EL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy TB6561FG,8,EL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | TB6561FG,8,EL |
|---|---|
| Manufacturer | Toshiba Semiconductor and Storage |
| Description | IC MOTOR DRIVER PAR 30SSOP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1000 pcs | 2000 pcs | 5000 pcs | ||
|---|---|---|---|---|---|
| $1.834 | $1.742 | $1.677 | |||
Specifications
Data sheet
| Voltage - Supply: | 10 V ~ 36 V |
|---|---|
| Voltage - Load: | 10 V ~ 36 V |
| Technology: | Bi-CMOS |
| Supplier Device Package: | 30-SSOP |
| Step Resolution: | - |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 30-BSOP (0.295", 7.50mm Width) |
| Output Configuration: | Half Bridge (4) |
| Other Names: | TB6561FG (O,8,EL) TB6561FG(EL) TB6561FG(O,8,EL) TB6561FG(O,EL) TB6561FG(O8EL)TR TB6561FG(O8EL)TR-ND TB6561FG8ELTR TB6561FGO8EL TB6561FGTR TB6561FGTR-ND |
| Operating Temperature: | -20°C ~ 85°C (TA) |
| Mounting Type: | Surface Mount |
| Motor Type - Stepper: | - |
| Motor Type - AC, DC: | Brushed DC |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Interface: | PWM |
| Function: | Driver - Fully Integrated, Control and Power Stage |
| Detailed Description: | Motor Driver Bi-CMOS PWM 30-SSOP |
| Current - Output: | 1.5A |
| Base Part Number: | TB6561 |
| Applications: | General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply TB6561FG,8,EL, use the request quote form to request TB6561FG,8,EL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number TB6561FG,8,EL.The price and lead time for TB6561FG,8,EL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# TB6561FG,8,EL.We look forward to working with you to establish long-term relations of cooperation
