STG5683QTR
STMicroelectronics

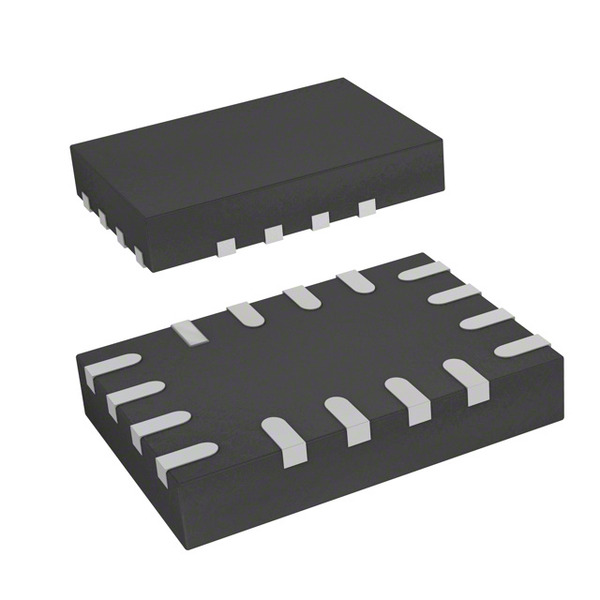

Images are for reference only.
See Product Specifications for product details.
Buy STG5683QTR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy STG5683QTR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | STG5683QTR |
|---|---|
| Manufacturer | STMicroelectronics, Semiconductors |
| Description | IC SWITCH DUAL SPDT 16QFN |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $2.71 | $2.437 | $1.959 | $1.61 | $1.334 | |
Specifications
Data sheet
| Voltage - Supply, Single (V+): | 1.65 V ~ 4.5 V |
|---|---|
| Voltage - Supply, Dual (V±): | - |
| Switch Time (Ton, Toff) (Max): | 80ns, 50ns |
| Switch Circuit: | SPDT |
| Supplier Device Package: | 16-QFN (2.6x1.8) |
| Series: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 16-UFQFN |
| Other Names: | 497-6921-1 |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| On-State Resistance (Max): | 550 mOhm |
| Number of Circuits: | 2 |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | 2 Circuit IC Switch 2:1 550 mOhm 16-QFN (2.6x1.8) |
| Current - Leakage (IS(off)) (Max): | - |
| Crosstalk: | -60dB @ 100kHz |
| Charge Injection: | 46pC |
| Channel-to-Channel Matching (ΔRon): | 15 mOhm |
| Channel Capacitance (CS(off), CD(off)): | 6pF |
| Base Part Number: | STG5683 |
| -3db Bandwidth: | 33MHz |
| Email: | info@cjjhk.com |
Introduce
We can supply STG5683QTR, use the request quote form to request STG5683QTR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STG5683QTR.The price and lead time for STG5683QTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STG5683QTR.We look forward to working with you to establish long-term relations of cooperation
