STG4260BJR
STMicroelectronics

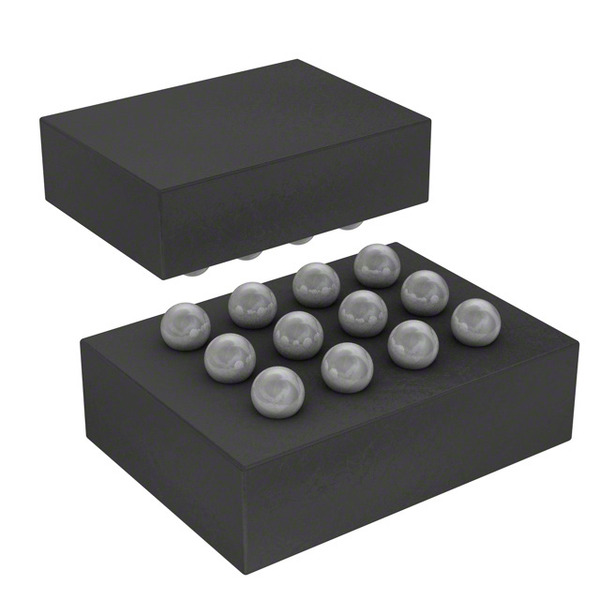

Images are for reference only.
See Product Specifications for product details.
Buy STG4260BJR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy STG4260BJR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | STG4260BJR |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | Low voltage 0.5 dual SPDT switch with break-before-make feature and 15 kV ESD protection |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.38 | $0.343 | $0.309 | $0.302 | ||
Specifications
Data sheet
| Voltage - Supply, Single (V+): | 1.65 V ~ 4.8 V |
|---|---|
| Voltage - Supply, Dual (V±): | - |
| Switch Time (Ton, Toff) (Max): | 38ns, 38ns |
| Switch Circuit: | SPDT |
| Supplier Device Package: | 12-FlipChip |
| Series: | - |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 12-UFBGA, FCBGA |
| Other Names: | 497-11975-1 |
| Operating Temperature: | -40°C ~ 85°C (TA) |
| On-State Resistance (Max): | 500 mOhm |
| Number of Circuits: | 2 |
| Multiplexer/Demultiplexer Circuit: | 2:1 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | 2 Circuit IC Switch 2:1 500 mOhm 12-FlipChip |
| Current - Leakage (IS(off)) (Max): | 30nA |
| Crosstalk: | -67dB @ 1MHz |
| Charge Injection: | 140pC |
| Channel-to-Channel Matching (ΔRon): | 10 mOhm |
| Channel Capacitance (CS(off), CD(off)): | 30pF |
| Base Part Number: | STG4260 |
| -3db Bandwidth: | 50MHz |
| Email: | info@cjjhk.com |
Introduce
We can supply STG4260BJR, use the request quote form to request STG4260BJR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number STG4260BJR.The price and lead time for STG4260BJR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# STG4260BJR.We look forward to working with you to establish long-term relations of cooperation
