SJ-43515TS
CUI, Inc.

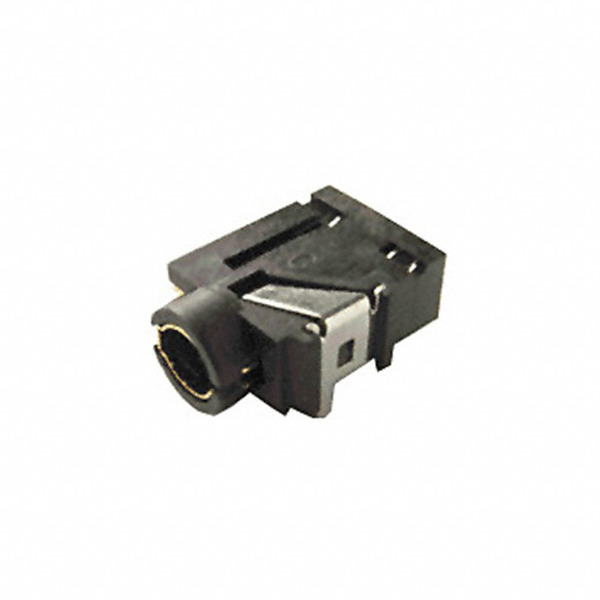

Images are for reference only.
See Product Specifications for product details.
Buy SJ-43515TS with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-43515TS with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SJ-43515TS |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK 4COND 3.5MM R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $1.20 | $1.056 | $0.994 | $0.952 | $0.911 | |
| 270 pcs | 540 pcs | 1080 pcs | 2700 pcs | ||
| $0.828 | $0.745 | $0.662 | $0.60 | ||
Specifications
Data sheet
| Voltage - Rated: | 12VDC |
|---|---|
| Thread Size: | - |
| Termination: | Solder |
| Signal Lines: | Stereo (4 Conductor, TRRS) |
| Shielding: | Unshielded |
| Series: | SJ |
| Panel Hole Size: | - |
| Packaging: | Bulk |
| Other Names: | 045-0651R CP-43515TS Q1025904A SJ-43515TS-ND SJ43515TS |
| Operating Temperature: | -20°C ~ 85°C |
| Number of Positions/Contacts: | 4 Conductors, 5 Contacts |
| Mounting Type: | Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Length/Depth: | 0.551" (14.00mm) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Single Switch |
| Insulation Color: | - |
| Industry Recognized Mating Diameter: | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes: | - |
| Housing Material: | Polyamide (PA66), Nylon 6/6 |
| Gender: | Female |
| Features: | - |
| Detailed Description: | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder |
| Current Rating: | 1A |
| Contact Material - Plating: | Gold |
| Contact Material: | Brass, Copper Alloy, Phosphor Bronze |
| Connector Type: | Phone Jack |
| California Prop 65: | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening: | - |
| Body Material: | - |
| Body Color: | Black |
| Actual Diameter: | 0.142" (3.60mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply SJ-43515TS, use the request quote form to request SJ-43515TS pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SJ-43515TS.The price and lead time for SJ-43515TS depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SJ-43515TS.We look forward to working with you to establish long-term relations of cooperation
