SJ-43504-SMT-TR
CUI, Inc.

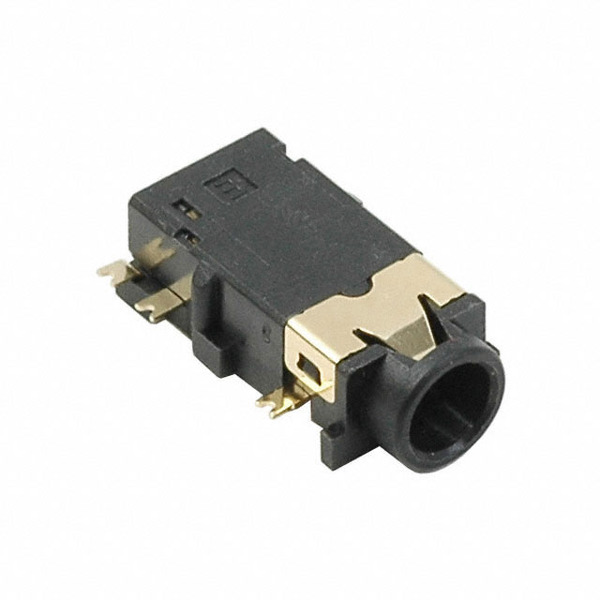

Images are for reference only.
See Product Specifications for product details.
Buy SJ-43504-SMT-TR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SJ-43504-SMT-TR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SJ-43504-SMT-TR |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN JACK 4COND 3.5MM SMD R/A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $1.41 | $1.243 | $1.17 | $1.121 | ||
| 100 pcs | 250 pcs | 500 pcs | |||
| $1.073 | $0.975 | $0.878 | |||
Specifications
Data sheet
| Voltage - Rated: | 12VDC |
|---|---|
| Thread Size: | - |
| Termination: | Solder |
| Signal Lines: | Stereo (4 Conductor, TRRS) |
| Shielding: | Shielded |
| Series: | - |
| Panel Hole Size: | - |
| Packaging: | Cut Tape (CT) |
| Other Names: | 045-0007R CP-43504SJCT |
| Operating Temperature: | -20°C ~ 85°C |
| Number of Positions/Contacts: | 4 Conductors, 6 Contacts |
| Mounting Type: | Board Cutout, Surface Mount, Right Angle |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Length/Depth: | 0.551" (14.00mm) |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Two Switches |
| Insulation Color: | - |
| Industry Recognized Mating Diameter: | 3.50mm (0.141", 1/8", Mini Plug) - Headphone |
| Includes: | - |
| Housing Material: | Polyamide (PA6T), Nylon 6T |
| Gender: | Female |
| Features: | - |
| Detailed Description: | 3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (4 Conductor, TRRS) Connector Solder |
| Current Rating: | 1A |
| Contact Material - Plating: | Gold |
| Contact Material: | Copper Alloy |
| Connector Type: | Phone Jack |
| California Prop 65: | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Cable Opening: | - |
| Body Material: | - |
| Body Color: | Gold, Black |
| Actual Diameter: | 0.142" (3.60mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply SJ-43504-SMT-TR, use the request quote form to request SJ-43504-SMT-TR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SJ-43504-SMT-TR.The price and lead time for SJ-43504-SMT-TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SJ-43504-SMT-TR.We look forward to working with you to establish long-term relations of cooperation
