SH50F-3.0-47
AlfaMag Electronics (AMGIS)

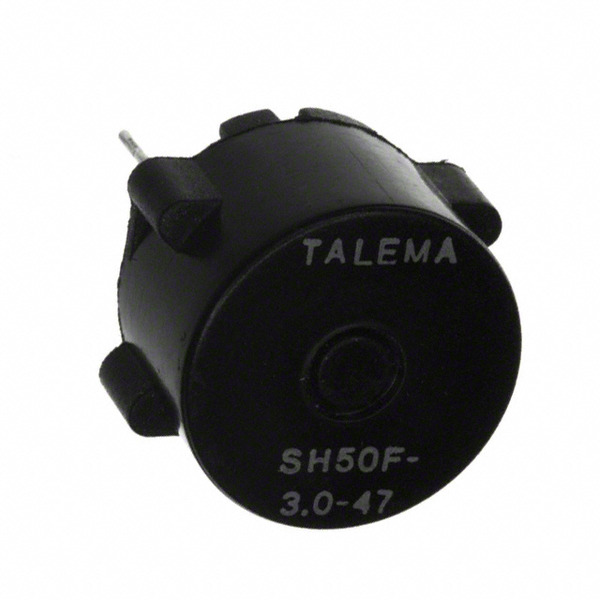

Images are for reference only.
See Product Specifications for product details.
Buy SH50F-3.0-47 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SH50F-3.0-47 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SH50F-3.0-47 |
|---|---|
| Manufacturer | AlfaMag Electronics (AMGIS) |
| Description | FIXED IND 47UH 3A 50 MOHM TH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 200 pcs | ||
|---|---|---|---|---|---|
| $5.68 | $5.203 | $3.406 | |||
| 600 pcs | 1000 pcs | 2600 pcs | |||
| $3.027 | $2.838 | $2.743 | |||
Specifications
Data sheet
| Type: | Toroidal |
|---|---|
| Tolerance: | ±20% |
| Supplier Device Package: | - |
| Size / Dimension: | 0.689" L x 0.669" W (17.50mm x 17.00mm) |
| Shielding: | Unshielded |
| Series: | SH50 |
| Ratings: | - |
| Q @ Freq: | - |
| Packaging: | Tray |
| Package / Case: | Radial |
| Other Names: | SH50F3047 TE2137 |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material - Core: | Iron Powder |
| Manufacturer Standard Lead Time: | 18 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance Frequency - Test: | 10kHz |
| Inductance: | 47µH |
| Height - Seated (Max): | 0.492" (12.50mm) |
| Frequency - Self Resonant: | - |
| Detailed Description: | 47µH Unshielded Toroidal Inductor 3A 50 mOhm Max Radial |
| DC Resistance (DCR): | 50 mOhm Max |
| Current Rating: | 3A |
| Current - Saturation: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply SH50F-3.0-47, use the request quote form to request SH50F-3.0-47 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SH50F-3.0-47.The price and lead time for SH50F-3.0-47 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SH50F-3.0-47.We look forward to working with you to establish long-term relations of cooperation
