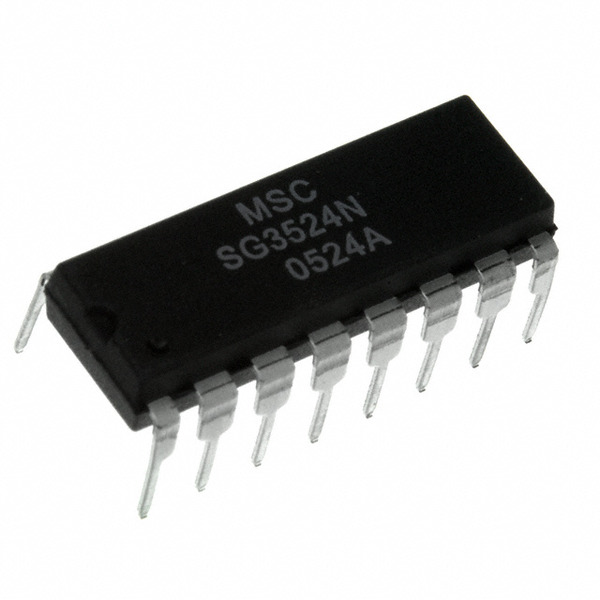

SG3524N
Microsemi
Images are for reference only.
See Product Specifications for product details.
Buy SG3524N with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy SG3524N with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | SG3524N |
|---|---|
| Manufacturer | Microsemi |
| Description | IC REG CTRLR MULT TOPOLOGY 16DIP |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 250 pcs |
|---|---|---|---|---|---|
| $1.64 | $1.484 | $1.325 | $1.193 | $1.06 | |
| 500 pcs | 1000 pcs | 2500 pcs | 5000 pcs | ||
| $0.928 | $0.769 | $0.716 | $0.689 | ||
Specifications
Data sheet
| Voltage - Supply (Vcc/Vdd): | 8 V ~ 40 V |
|---|---|
| Topology: | Buck, Flyback, Push-Pull |
| Synchronous Rectifier: | Yes |
| Supplier Device Package: | 16-PDIP |
| Series: | - |
| Serial Interfaces: | - |
| Packaging: | Tube |
| Package / Case: | 16-DIP (0.300", 7.62mm) |
| Output Type: | Transistor Driver |
| Output Phases: | 1 |
| Output Configuration: | Positive |
| Operating Temperature: | 0°C ~ 70°C (TA) |
| Number of Outputs: | 2 |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Function: | Step-Down, Step-Up/Step-Down |
| Frequency - Switching: | 100kHz ~ 300kHz |
| Duty Cycle (Max): | 49% |
| Detailed Description: | Buck, Flyback, Push-Pull Regulator Positive Output Step-Down, Step-Up/Step-Down DC-DC Controller IC 16-PDIP |
| Control Features: | Enable |
| Clock Sync: | No |
| Base Part Number: | SG*524 |
| Email: | info@cjjhk.com |
Introduce
We can supply SG3524N, use the request quote form to request SG3524N pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number SG3524N.The price and lead time for SG3524N depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# SG3524N.We look forward to working with you to establish long-term relations of cooperation
