RT1A050ZPTR
LAPIS Semiconductor

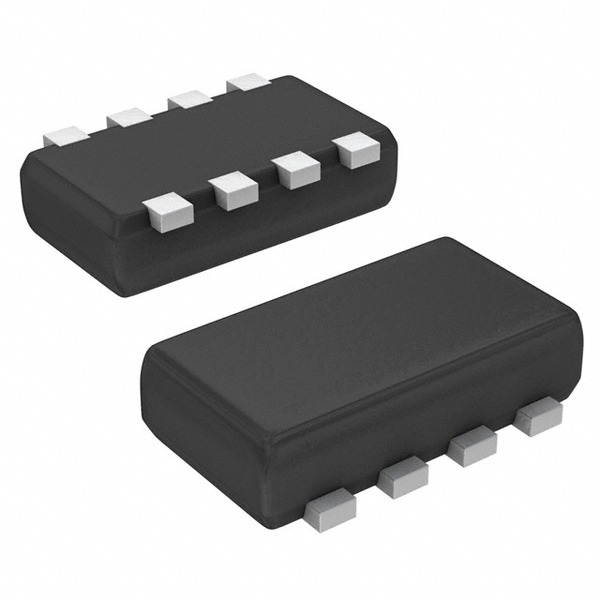

Images are for reference only.
See Product Specifications for product details.
Buy RT1A050ZPTR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy RT1A050ZPTR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | RT1A050ZPTR |
|---|---|
| Manufacturer | ROHM |
| Description | Trans Mosfet P-ch 12V 5A 8-PIN Tsst T/r |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.539 | $0.486 | $0.439 | $0.429 | ||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 1V @ 1mA |
|---|---|
| Vgs (Max): | ±10V |
| Technology: | MOSFET (Metal Oxide) |
| Supplier Device Package: | 8-TSST |
| Series: | - |
| Rds On (Max) @ Id, Vgs: | 26 mOhm @ 5A, 4.5V |
| Power Dissipation (Max): | 600mW (Ta) |
| Packaging: | Cut Tape (CT) |
| Package / Case: | 8-SMD, Flat Lead |
| Other Names: | RT1A050ZPCT |
| Operating Temperature: | 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 2800pF @ 6V |
| Gate Charge (Qg) (Max) @ Vgs: | 34nC @ 4.5V |
| FET Type: | P-Channel |
| FET Feature: | - |
| Drive Voltage (Max Rds On, Min Rds On): | 1.5V, 4.5V |
| Drain to Source Voltage (Vdss): | 12V |
| Detailed Description: | P-Channel 12V 5A (Ta) 600mW (Ta) Surface Mount 8-TSST |
| Current - Continuous Drain (Id) @ 25°C: | 5A (Ta) |
| Email: | info@cjjhk.com |
Introduce
We can supply RT1A050ZPTR, use the request quote form to request RT1A050ZPTR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number RT1A050ZPTR.The price and lead time for RT1A050ZPTR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# RT1A050ZPTR.We look forward to working with you to establish long-term relations of cooperation
