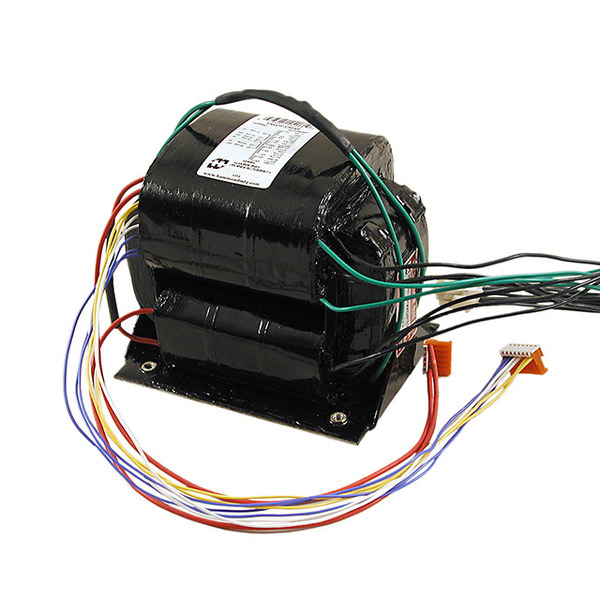

PWDP13049
Hammond Manufacturing
Images are for reference only.
See Product Specifications for product details.
Buy PWDP13049 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PWDP13049 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PWDP13049 |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | XFRMR ALPHA TPX-X168 91B AND 99 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $685.00 | |||||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Voltage - Secondary (Full Load): | 2050V, 390V, 105V, 28V, 13.3V |
| Voltage - Primary: | 100V, 120V |
| Voltage - Isolation: | - |
| Type: | Laminated Core |
| Termination Style: | Wire Leads |
| Size / Dimension: | 196.85mm L x 158.75mm W |
| Series: | Peter W. Dahl Design |
| Secondary Winding(s): | - |
| Primary Winding(s): | - |
| Power - Max: | - |
| Other Names: | HAM8949268 HAM8949268-ND Q8949268 Q9271562 |
| Mounting Type: | Chassis Mount |
| Manufacturer Standard Lead Time: | 6 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 168.27mm |
| Current - Output (Max): | 500mA, 3A, 7.2A |
| Center Tap: | Yes |
| Email: | info@cjjhk.com |
Introduce
We can supply PWDP13049, use the request quote form to request PWDP13049 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PWDP13049.The price and lead time for PWDP13049 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PWDP13049.We look forward to working with you to establish long-term relations of cooperation
