PWDP13026
Hammond Manufacturing

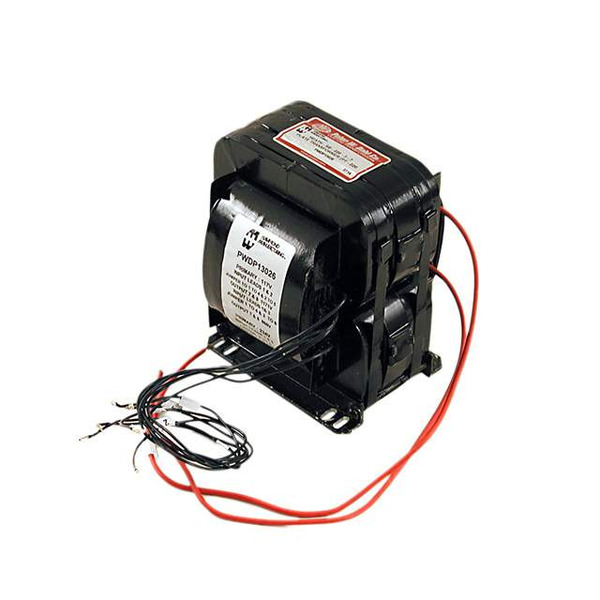

Images are for reference only.
See Product Specifications for product details.
Buy PWDP13026 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PWDP13026 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PWDP13026 |
|---|---|
| Manufacturer | Hammond Manufacturing |
| Description | HEATH SB-220 -3-7 PLATE TRNSFRMR |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | ||||
|---|---|---|---|---|---|
| $394.86 | |||||
Specifications
Data sheet
| Weight: | - |
|---|---|
| Voltage - Secondary (Full Load): | 1171V, 860V |
| Voltage - Primary: | 120V, 240V |
| Voltage - Isolation: | - |
| Type: | Laminated Core |
| Termination Style: | Wire Leads |
| Size / Dimension: | 127.00mm L x 133.35mm W |
| Series: | Peter W. Dahl Design |
| Secondary Winding(s): | Single |
| Primary Winding(s): | Dual, Multiple Taps |
| Power - Max: | - |
| Other Names: | Q8683236 Q9308310 Q9414741 |
| Mounting Type: | Chassis Mount |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 158.75mm |
| Current - Output (Max): | 1.3A |
| Center Tap: | No |
| Email: | info@cjjhk.com |
Introduce
We can supply PWDP13026, use the request quote form to request PWDP13026 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PWDP13026.The price and lead time for PWDP13026 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PWDP13026.We look forward to working with you to establish long-term relations of cooperation
