PLT10HH401100PNL
Murata Electronics

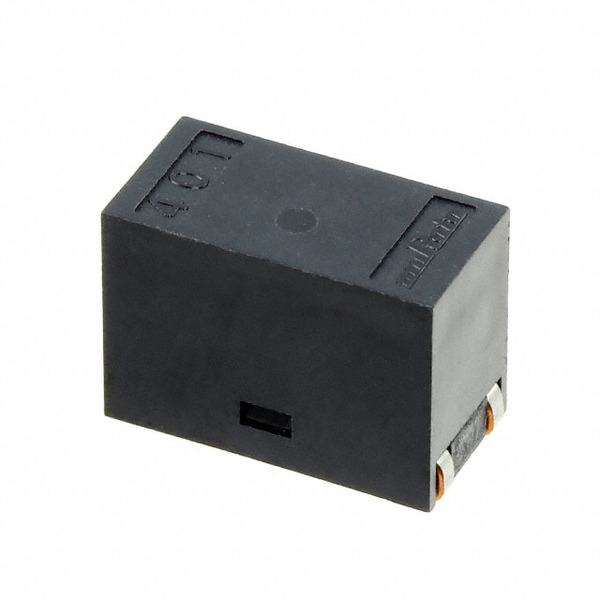

Images are for reference only.
See Product Specifications for product details.
Buy PLT10HH401100PNL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PLT10HH401100PNL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PLT10HH401100PNL |
|---|---|
| Manufacturer | Murata Electronics |
| Description | CMC 10A 2LN 400 OHM SMD AEC-Q200 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | |
|---|---|---|---|---|---|
| $6.19 | $5.228 | $4.482 | $4.375 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 100V |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.508" L x 0.358" W (12.90mm x 9.10mm) |
| Series: | PLT10H |
| Ratings: | AEC-Q200 |
| Packaging: | Original-Reel® |
| Package / Case: | Vertical, 4 PC Pad |
| Other Names: | 490-11859-6 |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Impedance @ Frequency: | 400 Ohms @ 10MHz |
| Height (Max): | 0.370" (9.40mm) |
| Filter Type: | Power Line |
| Features: | - |
| Detailed Description: | 2 Line Common Mode Choke Surface Mount 400 Ohms @ 10MHz 10A DCR 4.1 mOhm |
| DC Resistance (DCR) (Max): | 4.1 mOhm |
| Current Rating (Max): | 10A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PLT10HH401100PNL, use the request quote form to request PLT10HH401100PNL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PLT10HH401100PNL.The price and lead time for PLT10HH401100PNL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PLT10HH401100PNL.We look forward to working with you to establish long-term relations of cooperation
