PLT10HH101150PNL
Murata Electronics

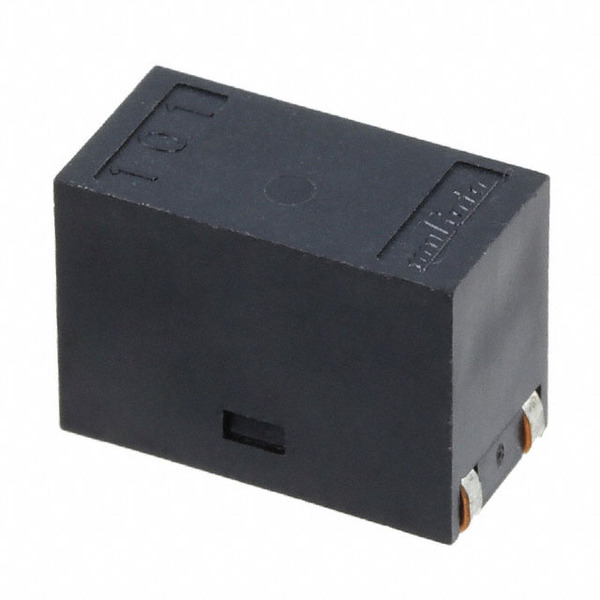

Images are for reference only.
See Product Specifications for product details.
Buy PLT10HH101150PNL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PLT10HH101150PNL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PLT10HH101150PNL |
|---|---|
| Manufacturer | Murata |
| Description | Common Mode Chokes Dual 2uH 100Ohm 10MHz 15A 1.8mOhm DCR SMD Automotive Embossed T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $7.67 | $6.923 | $6.244 | $6.108 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 300V |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.508" L x 0.358" W (12.90mm x 9.10mm) |
| Series: | PLT10H |
| Ratings: | AEC-Q200 |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Vertical, 4 PC Pad |
| Other Names: | 490-12821-2 |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Impedance @ Frequency: | 100 Ohms @ 10MHz |
| Height (Max): | 0.370" (9.40mm) |
| Filter Type: | Power Line |
| Features: | - |
| Detailed Description: | 2 Line Common Mode Choke Surface Mount 100 Ohms @ 10MHz 15A DCR 2.3 mOhm |
| DC Resistance (DCR) (Max): | 2.3 mOhm |
| Current Rating (Max): | 15A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PLT10HH101150PNL, use the request quote form to request PLT10HH101150PNL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PLT10HH101150PNL.The price and lead time for PLT10HH101150PNL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PLT10HH101150PNL.We look forward to working with you to establish long-term relations of cooperation
