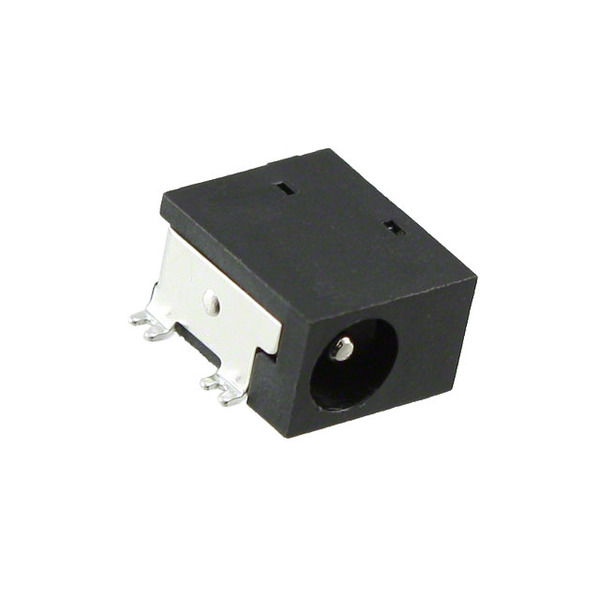

PJ-014D-SMT-TR
CUI, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy PJ-014D-SMT-TR with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-014D-SMT-TR with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PJ-014D-SMT-TR |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN PWR JACK 1.35X3.5MM SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Voltage - Rated: | 16VDC |
|---|---|
| Thread Size: | - |
| Termination: | Solder |
| Shielding: | Unshielded |
| Series: | - |
| Packaging: | Tape & Reel (TR) |
| Other Names: | CP-014DPJTR PJ-014D-SMT PJ014DSMTTR |
| Operating Temperature: | -25°C ~ 85°C |
| Number of Positions/Contacts: | 2 Conductors, 3 Contacts |
| Mounting Type: | Surface Mount, Right Angle |
| Mounting Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Length/Depth: | - |
| Material Flammability Rating: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Single Switch, Normally Closed |
| Insulation Color: | - |
| Ingress Protection: | - |
| Industry Recognized Mating Diameter: | 1.35mm ID (0.053"), 3.50mm OD (0.138") |
| Includes: | - |
| Housing Material: | Polyamide (PA6T), Nylon 6T |
| Gender: | Male |
| Features: | Board Guide |
| Detailed Description: | Power Barrel Connector Jack 1.35mm ID (0.053"), 3.50mm OD (0.138") Surface Mount, Right Angle |
| Current Rating: | 2A |
| Contact Material - Plating: | Silver |
| Contact Material: | Brass; Copper Alloy |
| Connector Type: | Jack |
| Body Material: | - |
| Body Color: | Black |
| Actual Diameter: | 0.051" (1.30mm ID), 0.154" (3.90mm OD) |
| Email: | info@cjjhk.com |
Introduce
We can supply PJ-014D-SMT-TR, use the request quote form to request PJ-014D-SMT-TR pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PJ-014D-SMT-TR.The price and lead time for PJ-014D-SMT-TR depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PJ-014D-SMT-TR.We look forward to working with you to establish long-term relations of cooperation
