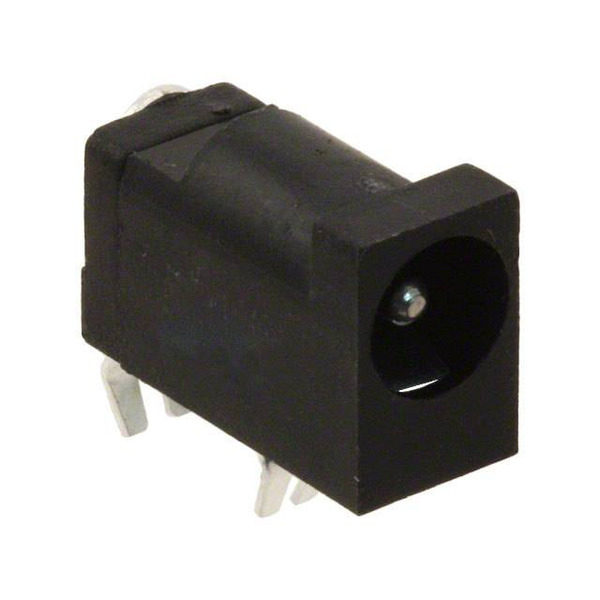

PJ-013D
CUI, Inc.
Images are for reference only.
See Product Specifications for product details.
Buy PJ-013D with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PJ-013D with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PJ-013D |
|---|---|
| Manufacturer | CUI, Inc. |
| Description | CONN POWER JACK 1.3X3.4MM |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.70 | $0.66 | $0.594 | $0.528 | $0.506 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.462 | $0.44 | $0.363 | $0.33 | ||
Specifications
Data sheet
| Voltage - Rated: | 24VDC |
|---|---|
| Thread Size: | - |
| Termination: | Kinked Pin |
| Shielding: | Unshielded |
| Series: | - |
| Packaging: | Bulk |
| Other Names: | 045-0770R CP-013D PJ-013D-ND PJ013D Q1868337 |
| Operating Temperature: | -25°C ~ 85°C |
| Number of Positions/Contacts: | 2 Conductors, 3 Contacts |
| Mounting Type: | Through Hole, Right Angle |
| Mounting Feature: | - |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Mating Length/Depth: | 0.260" (6.60mm) |
| Material Flammability Rating: | UL94 V-0 |
| Manufacturer Standard Lead Time: | 12 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Internal Switch(s): | Single Switch, Normally Closed |
| Insulation Color: | - |
| Ingress Protection: | - |
| Industry Recognized Mating Diameter: | 1.30mm ID (0.051"), 3.40mm OD (0.134") |
| Includes: | - |
| Housing Material: | Polybutylene Terephthalate (PBT) |
| Gender: | Male |
| Features: | - |
| Detailed Description: | Power Barrel Connector Jack 1.30mm ID (0.051"), 3.40mm OD (0.134") Through Hole, Right Angle |
| Current Rating: | 3.5A |
| Contact Material - Plating: | Silver |
| Contact Material: | Brass; Copper Alloy |
| Connector Type: | Jack |
| California Prop 65: | Warning Information WARNING: Cancer and Reproductive Harm - www.P65warnings.ca.gov. |
| Body Material: | - |
| Body Color: | Black |
| Actual Diameter: | 0.051" (1.30mm ID), 0.165" (4.20mm OD) |
| Email: | info@cjjhk.com |
Introduce
We can supply PJ-013D, use the request quote form to request PJ-013D pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PJ-013D.The price and lead time for PJ-013D depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PJ-013D.We look forward to working with you to establish long-term relations of cooperation
