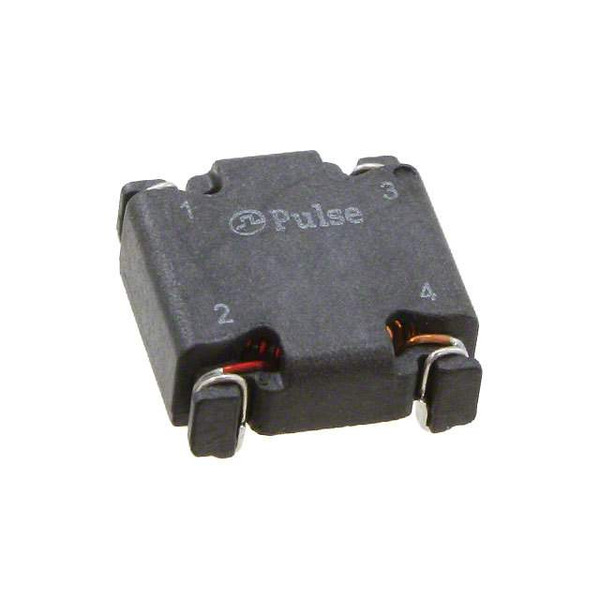

PA2747NL
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy PA2747NL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PA2747NL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PA2747NL |
|---|---|
| Manufacturer | Pulse |
| Description | Common Mode Chokes / Filters 2.8mOhms 61uH 7A SMD Toroid Choke |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.066 | $0.962 | $0.868 | $0.849 | ||
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.508" L x 0.500" W (12.90mm x 12.70mm) |
| Series: | - |
| Ratings: | - |
| Packaging: | Tube |
| Package / Case: | Horizontal, 4 PC Pad |
| Other Names: | 553-2185 PA2747NL-ND |
| Operating Temperature: | -40°C ~ 130°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 15 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height (Max): | 0.220" (5.60mm) |
| Filter Type: | - |
| Features: | - |
| Detailed Description: | 2 Line Common Mode Choke Surface Mount 7A DCR 2.9 mOhm |
| DC Resistance (DCR) (Max): | 2.9 mOhm |
| Current Rating (Max): | 7A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PA2747NL, use the request quote form to request PA2747NL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PA2747NL.The price and lead time for PA2747NL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PA2747NL.We look forward to working with you to establish long-term relations of cooperation
