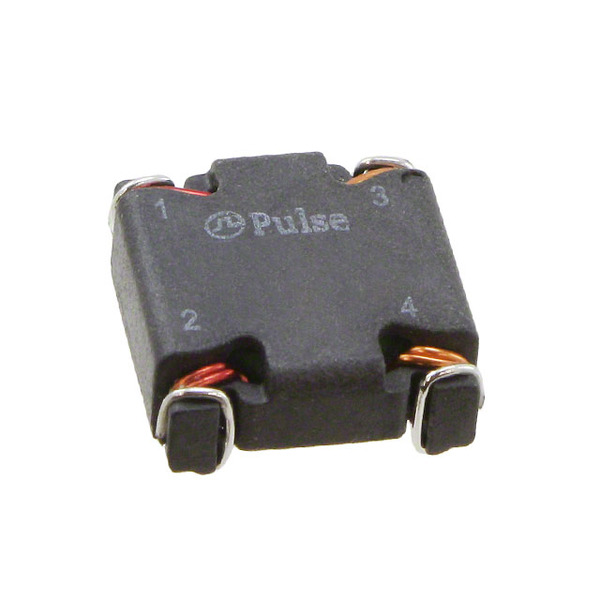

PA2744NL
Pulse Electronics Corporation
Images are for reference only.
See Product Specifications for product details.
Buy PA2744NL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PA2744NL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PA2744NL |
|---|---|
| Manufacturer | Pulse |
| Description | PA2744NL Series 4 A 13.2 mOhm SMT 2 Line Common Mode Choke |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.153 | $1.04 | $0.938 | $0.918 | ||
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Series: | - |
| Ratings: | - |
| Packaging: | Tube |
| Package / Case: | Horizontal, 4 PC Pad |
| Other Names: | 553-2182 PA2744NL-ND |
| Operating Temperature: | -40°C ~ 130°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 13 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height (Max): | 0.220" (5.60mm) |
| Filter Type: | - |
| Features: | - |
| Detailed Description: | 2 Line Common Mode Choke Surface Mount 4A DCR 13.2 mOhm |
| DC Resistance (DCR) (Max): | 13.2 mOhm |
| Current Rating (Max): | 4A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PA2744NL, use the request quote form to request PA2744NL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PA2744NL.The price and lead time for PA2744NL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PA2744NL.We look forward to working with you to establish long-term relations of cooperation
