PA2746NL
Pulse Electronics Corporation

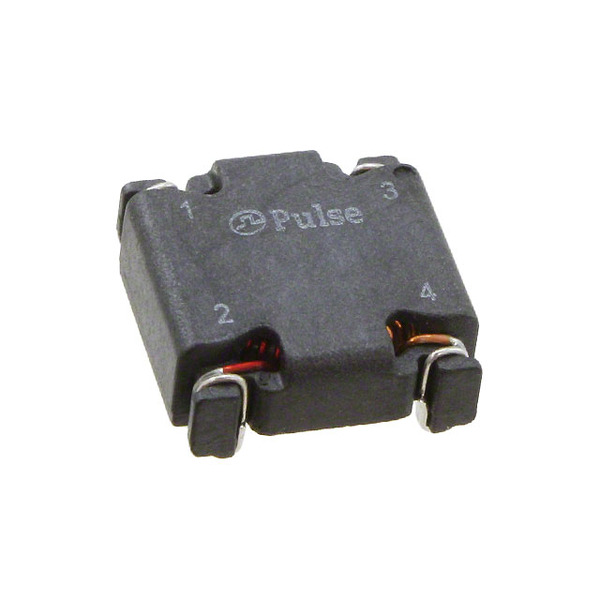

Images are for reference only.
See Product Specifications for product details.
Buy PA2746NL with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy PA2746NL with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | PA2746NL |
|---|---|
| Manufacturer | Pulse Electronics Corporation |
| Description | COMMON MODE CHOKE 6A 2LN SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 40 pcs | 120 pcs | ||
|---|---|---|---|---|---|
| $1.95 | $1.65 | $1.26 | |||
| 520 pcs | 1000 pcs | 2520 pcs | |||
| $1.02 | $0.93 | $0.90 | |||
Specifications
Data sheet
| Voltage Rating - DC: | - |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.508" L x 0.500" W (12.90mm x 12.70mm) |
| Series: | - |
| Ratings: | - |
| Packaging: | Tube |
| Package / Case: | Horizontal, 4 PC Pad |
| Other Names: | 553-2184 PA2746NL-ND |
| Operating Temperature: | -40°C ~ 130°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 15 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height (Max): | 0.220" (5.60mm) |
| Filter Type: | - |
| Features: | - |
| Detailed Description: | 2 Line Common Mode Choke Surface Mount 6A DCR 4.3 mOhm |
| DC Resistance (DCR) (Max): | 4.3 mOhm |
| Current Rating (Max): | 6A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply PA2746NL, use the request quote form to request PA2746NL pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number PA2746NL.The price and lead time for PA2746NL depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# PA2746NL.We look forward to working with you to establish long-term relations of cooperation
