NFL18ST706H1A3D
Murata Electronics

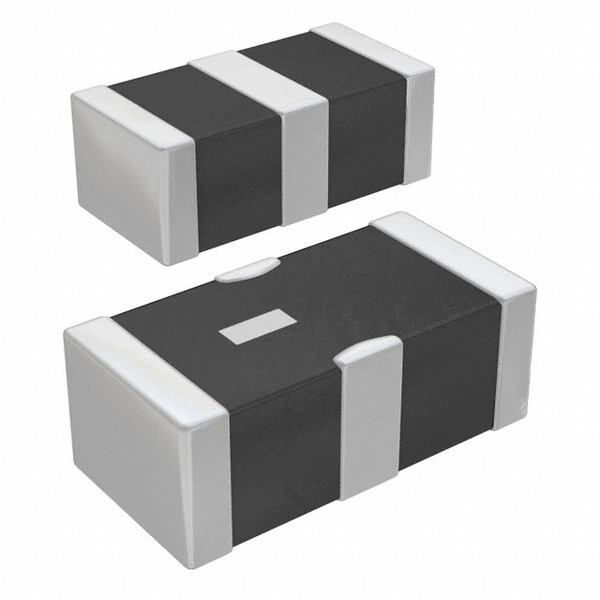

Images are for reference only.
See Product Specifications for product details.
Buy NFL18ST706H1A3D with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy NFL18ST706H1A3D with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | NFL18ST706H1A3D |
|---|---|
| Manufacturer | Murata Electronics |
| Description | FILTER LC(T) 230NH/70PF SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 4000 pcs | 8000 pcs | 12000 pcs | 28000 pcs | |
|---|---|---|---|---|---|
| $0.257 | $0.241 | $0.225 | $0.214 | ||
Specifications
Data sheet
| Voltage - Rated: | 10V |
|---|---|
| Values: | L = 230nH, C = 70pF |
| Type: | Low Pass |
| Technology: | LC (T-Type) |
| Size / Dimension: | 0.063" L x 0.032" W (1.60mm x 0.80mm) |
| Series: | EMIFIL®, NFL18 |
| Resistance - Channel (Ohms): | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 0603 (1608 Metric), 3 PC Pad |
| Other Names: | 490-11837-2 NFL18ST706H1A3D-ND |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Channels: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height: | 0.035" (0.90mm) |
| Filter Order: | 3rd |
| ESD Protection: | No |
| Detailed Description: | LC (T-Type) EMI Filter 3rd Order Low Pass 1 Channel L = 230nH, C = 70pF 75mA 0603 (1608 Metric), 3 PC Pad |
| Current: | 75mA |
| Center / Cutoff Frequency: | 70MHz (Cutoff) |
| Attenuation Value: | 6dB @ 0MHz ~ 70MHz |
| Applications: | General Purpose |
| Email: | info@cjjhk.com |
Introduce
We can supply NFL18ST706H1A3D, use the request quote form to request NFL18ST706H1A3D pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number NFL18ST706H1A3D.The price and lead time for NFL18ST706H1A3D depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# NFL18ST706H1A3D.We look forward to working with you to establish long-term relations of cooperation
