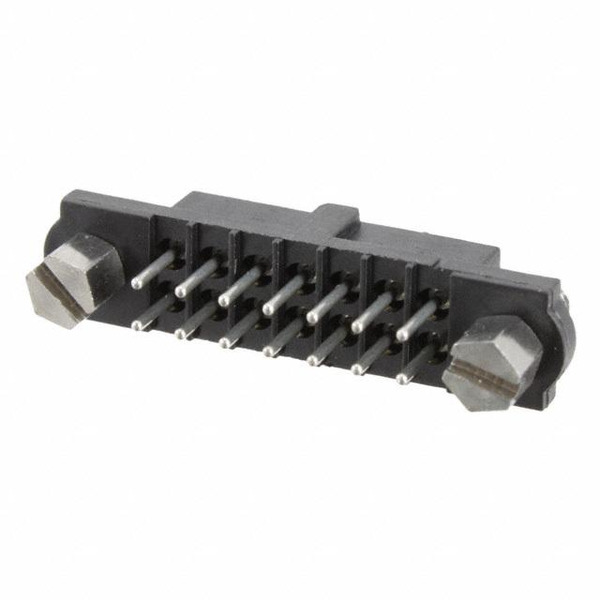

M80-4001442
Harwin
Images are for reference only.
See Product Specifications for product details.
Buy M80-4001442 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy M80-4001442 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | M80-4001442 |
|---|---|
| Manufacturer | Harwin |
| Description | 2 X 7POS FEMALE PC TAIL (3MM) |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 11 pcs | 110 pcs | 506 pcs | 1001 pcs |
|---|---|---|---|---|---|
| $12.83 | $11.66 | $9.911 | $8.454 | $7.754 | |
Specifications
Data sheet
| Voltage Rating: | 120V |
|---|---|
| Termination: | Solder |
| Style: | Board to Board or Cable |
| Series: | Datamate J-Tek |
| Row Spacing - Mating: | 0.079" (2.00mm) |
| Pitch - Mating: | 0.079" (2.00mm) |
| Packaging: | Tube |
| Other Names: | 952-1886 M80-4T11442F1 M80-4T11442F1-ND M804001442 |
| Operating Temperature: | -55°C ~ 125°C |
| Number of Rows: | 2 |
| Number of Positions Loaded: | All |
| Number of Positions: | 14 |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Material Flammability Rating: | UL94 V-0 |
| Mated Stacking Heights: | 7.3mm, 7.55mm |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insulation Material: | Polyphenylene Sulfide (PPS), Glass Filled |
| Insulation Height: | 0.205" (5.20mm) |
| Insulation Color: | Black |
| Ingress Protection: | - |
| Features: | Jackscrews, Mating Flange, Mounting Flange, Polarizing Key |
| Fastening Type: | Screw Lock |
| Detailed Description: | 14 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold |
| Current Rating: | - |
| Contact Type: | Female Socket |
| Contact Shape: | Circular |
| Contact Material: | Beryllium Copper |
| Contact Length - Post: | 0.118" (3.00mm) |
| Contact Finish Thickness - Post: | 137.8µin (3.50µm) |
| Contact Finish Thickness - Mating: | 12.0µin (0.30µm) |
| Contact Finish - Post: | Tin |
| Contact Finish - Mating: | Gold |
| Connector Type: | Receptacle |
| Applications: | Automotive, General Purpose, Military |
| Email: | info@cjjhk.com |
Introduce
We can supply M80-4001442, use the request quote form to request M80-4001442 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number M80-4001442.The price and lead time for M80-4001442 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# M80-4001442.We look forward to working with you to establish long-term relations of cooperation
