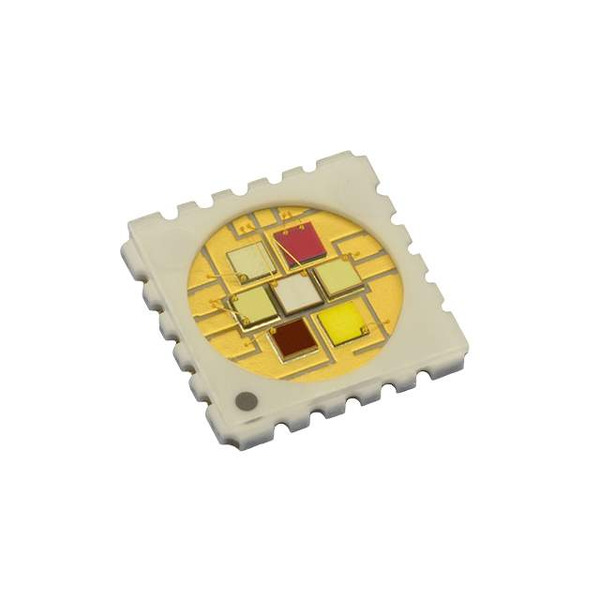

LZ7-04M100
LED Engin
Images are for reference only.
See Product Specifications for product details.
Buy LZ7-04M100 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy LZ7-04M100 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | LZ7-04M100 |
|---|---|
| Manufacturer | LED Engin |
| Description | LED EMITTER MULTI COLOR SMD |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 100 pcs | 300 pcs | 500 pcs | ||
|---|---|---|---|---|---|
| $17.559 | $16.651 | $16.106 | |||
Specifications
Data sheet
| Wavelength: | 595nm Amber, 457nm Blue, 497nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White |
|---|---|
| Voltage - Forward (Vf) (Typ): | 2.5V Amber, 3.3V Blue, 3.45V Cyan, 3.7V Green, 2.5V Red, 3.7V Violet, 3.3V White |
| Viewing Angle: | 120° |
| Thermal Resistance of Package: | 1.4°C/W |
| Temperature - Test: | 25°C |
| Supplier Device Package: | SMD |
| Size / Dimension: | 0.276" L x 0.276" W (7.00mm x 7.00mm) |
| Series: | LuxiGen™ |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 2828 (7070 Metric) |
| Other Names: | 1537-1183-2 LZ7-04M100-0000 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lumens/Watt @ Current - Test: | 39 lm/W Amber, 14 lm/W Blue, 42 lm/W Cyan, 54 lm/W Green, 44 lm/W Red, 91 lm/W White |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Height - Seated (Max): | 0.044" (1.11mm) |
| Flux @ Current/Temperature - Test: | 70 lm Amber, 33 lm Blue, 101 lm Cyan, 140 lm Green, 80 lm Red, 900mW Violet, 210 lm White |
| Detailed Description: | LED Lighting Color LuxiGen™ Amber, Blue, Cyan, Green, Red, Violet, White - Cool 595nm Amber, 457nm Blue, 497nm Cyan, 525nm Green, 624nm Red, 395nm Violet, 6500K White 2828 (7070 Metric) |
| Current - Test: | 700mA Amber, 700mA Blue, 700mA Cyan, 700mA Green, 700mA Red, 700mA Violet, 700mA White |
| Current - Max: | 1A Amber, 1.5A Blue, 1A Cyan, 1.5A Green, 1.5A Red, 1A Violet, 1.5A White |
| Color: | Amber, Blue, Cyan, Green, Red, Violet, White - Cool |
| Email: | info@cjjhk.com |
Introduce
We can supply LZ7-04M100, use the request quote form to request LZ7-04M100 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number LZ7-04M100.The price and lead time for LZ7-04M100 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# LZ7-04M100.We look forward to working with you to establish long-term relations of cooperation
