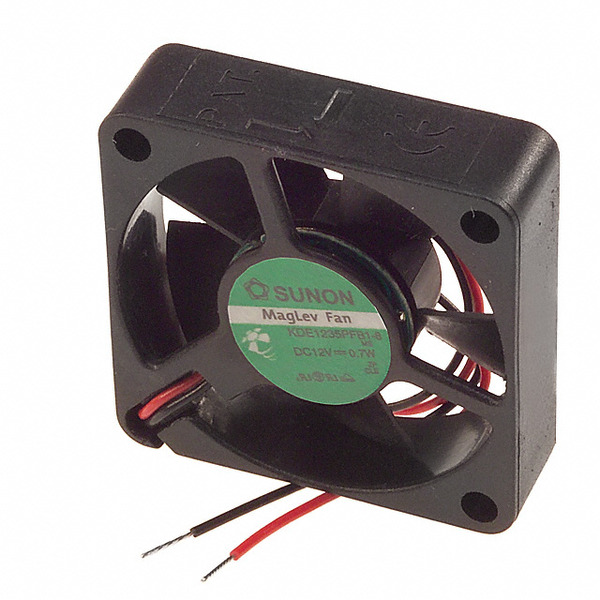

KDE1235PFB1-8 ( MS )
Sunon
Images are for reference only.
See Product Specifications for product details.
Buy KDE1235PFB1-8 ( MS ) with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy KDE1235PFB1-8 ( MS ) with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | KDE1235PFB1-8 ( MS ) |
|---|---|
| Manufacturer | Sunon |
| Description | FAN AXIAL 35X10MM 12VDC WIRE |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Width: | 10.00mm |
|---|---|
| Weight: | 0.02 lb (9.07g) |
| Voltage Range: | 5 ~ 13.8VDC |
| Voltage - Rated: | 12VDC |
| Termination: | 2 Wire Leads |
| Static Pressure: | 0.120 in H2O (29.9 Pa) |
| Size / Dimension: | Square - 35mm L x 35mm H |
| Series: | KDE |
| RPM: | 7500 RPM |
| Power (Watts): | 1.00W |
| Other Names: | 259-1183 E1235PFA18---RZ KDE1235PFB1-8(MS) KDE1235PFB18MS |
| Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
| Noise: | 25.5 dB(A) |
| Material - Frame: | Polybutylene Terephthalate (PBT) |
| Material - Blade: | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp.: | - |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Ingress Protection: | - |
| Features: | - |
| Fan Type: | Tubeaxial |
| Current Rating: | 0.080A |
| Bearing Type: | Ball |
| Approvals: | CE, CUR, TUV, UL |
| Air Flow: | 6.5 CFM (0.182m³/min) |
| Email: | info@cjjhk.com |
Introduce
We can supply KDE1235PFB1-8 ( MS ), use the request quote form to request KDE1235PFB1-8 ( MS ) pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number KDE1235PFB1-8 ( MS ).The price and lead time for KDE1235PFB1-8 ( MS ) depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# KDE1235PFB1-8 ( MS ).We look forward to working with you to establish long-term relations of cooperation
