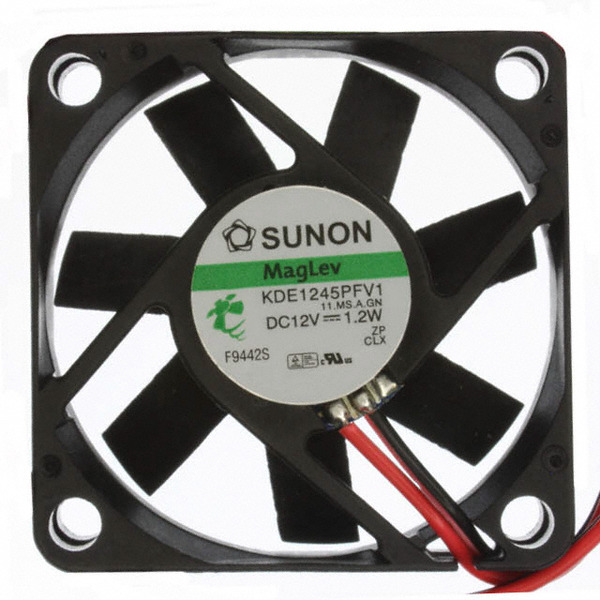

KDE1245PFV1.11.MS.A.GN
Sunon
Images are for reference only.
See Product Specifications for product details.
Buy KDE1245PFV1.11.MS.A.GN with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy KDE1245PFV1.11.MS.A.GN with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | KDE1245PFV1.11.MS.A.GN |
|---|---|
| Manufacturer | Sunon |
| Description | FAN AXIAL 45X10MM 12VDC WIRE |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Width: | 10.00mm |
|---|---|
| Weight: | 0.041 lb (18.6g) |
| Voltage Range: | 4.5 ~ 13.8VDC |
| Voltage - Rated: | 12VDC |
| Termination: | 2 Wire Leads |
| Static Pressure: | 0.170 in H2O (42.3 Pa) |
| Size / Dimension: | Square - 45mm L x 45mm H |
| Series: | MagLev® KDE |
| RPM: | 6000 RPM |
| Power (Watts): | 1.20W |
| Other Names: | 259-1360 E1245PFU14A-GRK KDE1245PFV1 11.MS.A.GN |
| Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
| Noise: | 32.0 dB(A) |
| Material - Frame: | Polybutylene Terephthalate (PBT) |
| Material - Blade: | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp.: | - |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Features: | - |
| Fan Type: | Tubeaxial |
| Current Rating: | 0.100A |
| Bearing Type: | Vapo-Bearing™ |
| Approvals: | CE, CUR, TUV, UL |
| Air Flow: | 11.0 CFM (0.308m³/min) |
| Email: | info@cjjhk.com |
Introduce
We can supply KDE1245PFV1.11.MS.A.GN, use the request quote form to request KDE1245PFV1.11.MS.A.GN pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number KDE1245PFV1.11.MS.A.GN.The price and lead time for KDE1245PFV1.11.MS.A.GN depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# KDE1245PFV1.11.MS.A.GN.We look forward to working with you to establish long-term relations of cooperation
