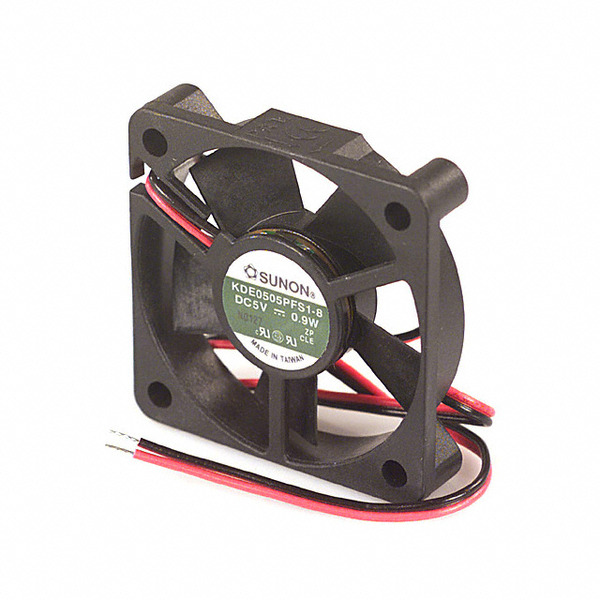

KDE0505PFS1-8
Sunon
Images are for reference only.
See Product Specifications for product details.
Buy KDE0505PFS1-8 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy KDE0505PFS1-8 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | KDE0505PFS1-8 |
|---|---|
| Manufacturer | Sunon |
| Description | FAN AXIAL 50X10.5MM 5VDC WIRE |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Width: | 10.50mm |
|---|---|
| Weight: | 0.053 lb (24.04g) |
| Voltage Range: | 4 ~ 6VDC |
| Voltage - Rated: | 5VDC |
| Termination: | 2 Wire Leads |
| Static Pressure: | 0.105 in H2O (26.1 Pa) |
| Size / Dimension: | Square - 50mm L x 50mm H |
| Series: | KDE |
| RPM: | 5100 RPM |
| Power (Watts): | 900mW |
| Other Names: | 259-1258 E0550PFS18---RK KDE0505PFS1-8-ND KDE0505PFS18 |
| Operating Temperature: | 14 ~ 158°F (-10 ~ 70°C) |
| Noise: | 30.5 dB(A) |
| Material - Frame: | Polybutylene Terephthalate (PBT) |
| Material - Blade: | Polybutylene Terephthalate (PBT) |
| Lifetime @ Temp.: | - |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Ingress Protection: | - |
| Features: | - |
| Fan Type: | Tubeaxial |
| Current Rating: | 0.170A |
| Bearing Type: | Sleeve |
| Approvals: | cUR, UL |
| Air Flow: | 9.6 CFM (0.269m³/min) |
| Email: | info@cjjhk.com |
Introduce
We can supply KDE0505PFS1-8, use the request quote form to request KDE0505PFS1-8 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number KDE0505PFS1-8.The price and lead time for KDE0505PFS1-8 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# KDE0505PFS1-8.We look forward to working with you to establish long-term relations of cooperation
