HL2-H-DC24V
Panasonic

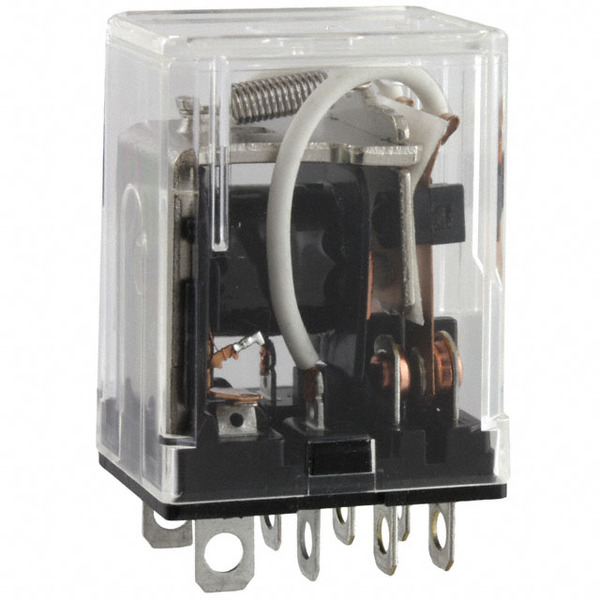

Images are for reference only.
See Product Specifications for product details.
Buy HL2-H-DC24V with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy HL2-H-DC24V with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | HL2-H-DC24V |
|---|---|
| Manufacturer | Panasonic |
| Description | RELAY GEN PURPOSE DPDT 10A 24V |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | Get a Quote | ||||
Specifications
Data sheet
| Turn On Voltage (Max): | 19.2 VDC |
|---|---|
| Turn Off Voltage (Min): | 2.4 VDC |
| Termination Style: | Plug In, Quick Connect - 0.187" (4.7mm) |
| Switching Voltage: | 125VAC - Nom |
| Series: | HL |
| Release Time: | 5ms |
| Relay Type: | General Purpose |
| Packaging: | Bulk |
| Operating Temperature: | -50°C ~ 70°C |
| Operate Time: | 10ms |
| Mounting Type: | Socketable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Features: | - |
| Detailed Description: | General Purpose Relay DPDT (2 Form C) 24VDC Coil Socketable |
| Contact Rating (Current): | 10A |
| Contact Material: | Silver Alloy |
| Contact Form: | DPDT (2 Form C) |
| Coil Voltage: | 24VDC |
| Coil Type: | Non Latching |
| Coil Resistance: | 650 Ohms |
| Coil Power: | 900 mW |
| Coil Current: | 37.0mA |
| Email: | info@cjjhk.com |
Introduce
We can supply HL2-H-DC24V, use the request quote form to request HL2-H-DC24V pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number HL2-H-DC24V.The price and lead time for HL2-H-DC24V depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# HL2-H-DC24V.We look forward to working with you to establish long-term relations of cooperation
