H3184-01
Harwin

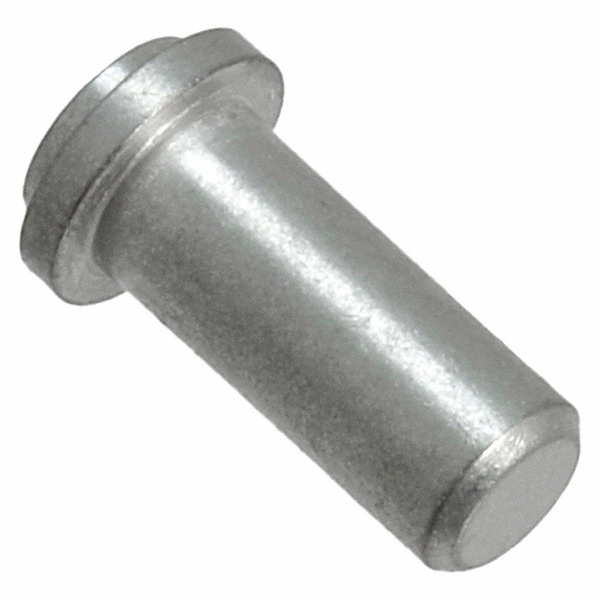

Images are for reference only.
See Product Specifications for product details.
Buy H3184-01 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy H3184-01 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | H3184-01 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN PIN RCPT .035-.041 PRESSFIT |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.47 | $0.441 | $0.397 | $0.353 | $0.338 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.309 | $0.294 | $0.243 | $0.221 | ||
Specifications
Data sheet
| Termination: | Press-Fit |
|---|---|
| Tail Type: | No Tail |
| Tail Diameter: | - |
| Socket Depth: | - |
| Series: | - |
| Pin Hole Diameter: | - |
| Packaging: | Bulk |
| Other Names: | 952-2208 H318401 |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Hole Diameter: | 0.086" ~ 0.088" (2.18mm ~ 2.24mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 7 Weeks |
| Length - Overall: | 0.236" (6.00mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Force: | 3.00N ~ 9.00N |
| Flange Diameter: | 0.125" (3.18mm) |
| Features: | - |
| Detailed Description: | Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) No Tail Press-Fit |
| Contact Material: | Beryllium Copper |
| Contact Finish Thickness: | 5.90µin (0.150µm) |
| Contact Finish: | Gold |
| Board Thickness: | - |
| Accepts Square Pin Size: | - |
| Accepts Pin Diameter: | 0.035" ~ 0.041" (0.89mm ~ 1.05mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply H3184-01, use the request quote form to request H3184-01 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number H3184-01.The price and lead time for H3184-01 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# H3184-01.We look forward to working with you to establish long-term relations of cooperation
