H3182-05
Harwin

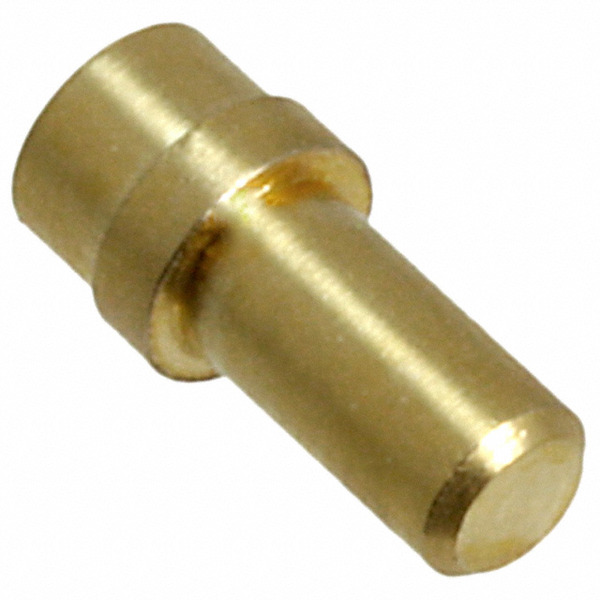

Images are for reference only.
See Product Specifications for product details.
Buy H3182-05 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy H3182-05 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | H3182-05 |
|---|---|
| Manufacturer | Harwin |
| Description | CONN PIN RCPT .035-.041 SOLDER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 50 pcs | 100 pcs |
|---|---|---|---|---|---|
| $0.48 | $0.45 | $0.405 | $0.36 | $0.345 | |
| 250 pcs | 500 pcs | 1000 pcs | 2500 pcs | ||
| $0.315 | $0.30 | $0.248 | $0.225 | ||
Specifications
Data sheet
| Termination: | Solder |
|---|---|
| Tail Type: | No Tail |
| Tail Diameter: | - |
| Socket Depth: | 0.140" (3.56mm) |
| Series: | - |
| Pin Hole Diameter: | - |
| Packaging: | Bulk |
| Other Names: | 952-2206 H318205 |
| Operating Temperature: | -55°C ~ 125°C |
| Mounting Hole Diameter: | 0.075" ~ 0.079" (1.91mm ~ 2.01mm) |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 5 Weeks |
| Length - Overall: | 0.222" (5.65mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Insertion Force: | 3.00N ~ 9.00N |
| Flange Diameter: | 0.105" (2.67mm) |
| Features: | - |
| Detailed Description: | Pin Receptacle Connector 0.035" ~ 0.041" (0.89mm ~ 1.05mm) No Tail Solder |
| Contact Material: | Beryllium Copper |
| Contact Finish Thickness: | 5.90µin (0.150µm) |
| Contact Finish: | Gold |
| Board Thickness: | - |
| Accepts Square Pin Size: | - |
| Accepts Pin Diameter: | 0.035" ~ 0.041" (0.89mm ~ 1.05mm) |
| Email: | info@cjjhk.com |
Introduce
We can supply H3182-05, use the request quote form to request H3182-05 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number H3182-05.The price and lead time for H3182-05 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# H3182-05.We look forward to working with you to establish long-term relations of cooperation
