FDPC8013S
onsemi

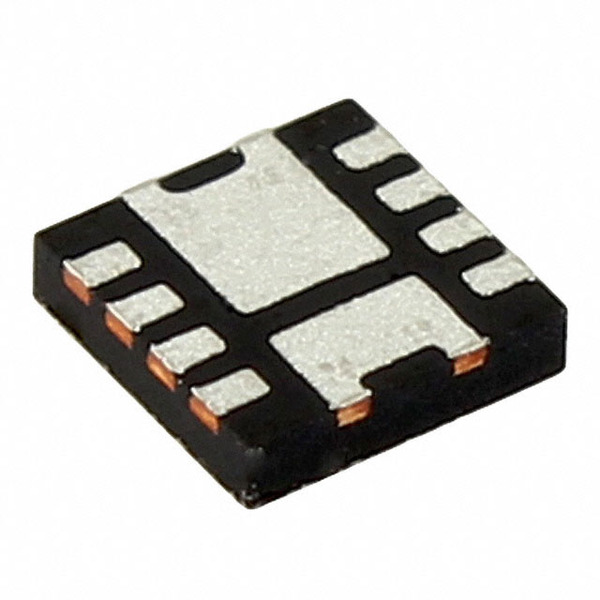

Images are for reference only.
See Product Specifications for product details.
Buy FDPC8013S with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy FDPC8013S with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | FDPC8013S |
|---|---|
| Manufacturer | onsemi |
| Description | MOSFET, N-CH, DUAL, 30V/12V, 8PQFN; Transistor Polarity: Dual N Channel; Continuo |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $1.374 | $1.24 | $1.118 | $1.094 | ||
Specifications
Data sheet
| Vgs(th) (Max) @ Id: | 3V @ 250µA |
|---|---|
| Supplier Device Package: | Powerclip-33 |
| Series: | PowerTrench® |
| Rds On (Max) @ Id, Vgs: | 6.4 mOhm @ 13A, 10V |
| Power - Max: | 800mW, 900mW |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | 8-PowerWDFN |
| Other Names: | FDPC8013STR |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 39 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Input Capacitance (Ciss) (Max) @ Vds: | 827pF @ 15V |
| Gate Charge (Qg) (Max) @ Vgs: | 13nC @ 10V |
| FET Type: | 2 N-Channel (Dual) |
| FET Feature: | Logic Level Gate |
| Drain to Source Voltage (Vdss): | 30V |
| Detailed Description: | Mosfet Array 2 N-Channel (Dual) 30V 13A, 26A 800mW, 900mW Surface Mount Powerclip-33 |
| Current - Continuous Drain (Id) @ 25°C: | 13A, 26A |
| Email: | info@cjjhk.com |
Introduce
We can supply FDPC8013S, use the request quote form to request FDPC8013S pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number FDPC8013S.The price and lead time for FDPC8013S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# FDPC8013S.We look forward to working with you to establish long-term relations of cooperation
