BTW69-1200N
STMicroelectronics

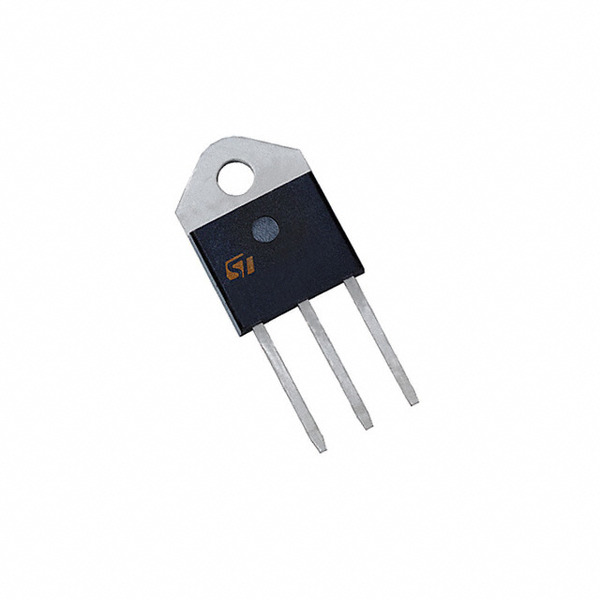

Images are for reference only.
See Product Specifications for product details.
Buy BTW69-1200N with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy BTW69-1200N with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | BTW69-1200N |
|---|---|
| Manufacturer | STMicroelectronics |
| Description | 50 A 1200 V non-insulated SCR thyristor |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $5.482 | $4.948 | $4.463 | $4.366 | ||
Specifications
Data sheet
| Voltage - On State (Vtm) (Max): | 1.6V |
|---|---|
| Voltage - Off State: | 1.2kV |
| Voltage - Gate Trigger (Vgt) (Max): | 1.3V |
| Supplier Device Package: | TOP3 |
| Series: | - |
| SCR Type: | Standard Recovery |
| Packaging: | Tube |
| Package / Case: | TOP-3 |
| Other Names: | 497-13986-5 |
| Operating Temperature: | -40°C ~ 125°C |
| Mounting Type: | Through Hole |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Detailed Description: | SCR 1.2kV 50A Standard Recovery Through Hole TOP3 |
| Current - On State (It (RMS)) (Max): | 50A |
| Current - On State (It (AV)) (Max): | 31A |
| Current - Off State (Max): | 10µA |
| Current - Non Rep. Surge 50, 60Hz (Itsm): | 700A, 763A |
| Current - Hold (Ih) (Max): | 100mA |
| Current - Gate Trigger (Igt) (Max): | 50mA |
| Base Part Number: | BTW69 |
| Email: | info@cjjhk.com |
Introduce
We can supply BTW69-1200N, use the request quote form to request BTW69-1200N pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number BTW69-1200N.The price and lead time for BTW69-1200N depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# BTW69-1200N.We look forward to working with you to establish long-term relations of cooperation
