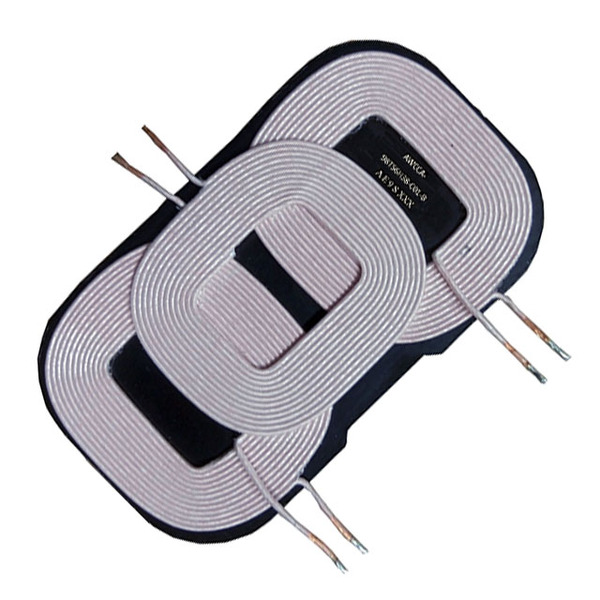

AWCCA-98T56H38-C01-B
Abracon Corporation
Images are for reference only.
See Product Specifications for product details.
Buy AWCCA-98T56H38-C01-B with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AWCCA-98T56H38-C01-B with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AWCCA-98T56H38-C01-B |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | TRANSMITTER 3 COIL 1 LAYER |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $11.51 | $10.647 | $8.633 | $8.057 | $7.654 | |
Specifications
Data sheet
| Type: | 3 Coil, 1 Layer |
|---|---|
| Tolerance: | ±10% |
| Size / Dimension: | 3.86" L x 2.20" W x 0.15" H (98.0mm x 56.0mm x 3.8mm) |
| Series: | AWCCA |
| Q @ Freq: | 120,110 @ 100kHZ |
| Other Names: | 535-13310 |
| Operating Temperature: | -25°C ~ 85°C |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 9 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 12.0µH, 11.5µH, 12.0µH |
| Function: | Transmitter |
| Frequency - Self Resonant: | - |
| Detailed Description: | 3 Coil, 1 Layer 12.0µH, 11.5µH, 12.0µH Wireless Charging Coil Transmitter 56 mOhm |
| DC Resistance (DCR): | 56 mOhm |
| Current Rating: | - |
| Current - Saturation: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply AWCCA-98T56H38-C01-B, use the request quote form to request AWCCA-98T56H38-C01-B pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AWCCA-98T56H38-C01-B.The price and lead time for AWCCA-98T56H38-C01-B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AWCCA-98T56H38-C01-B.We look forward to working with you to establish long-term relations of cooperation
