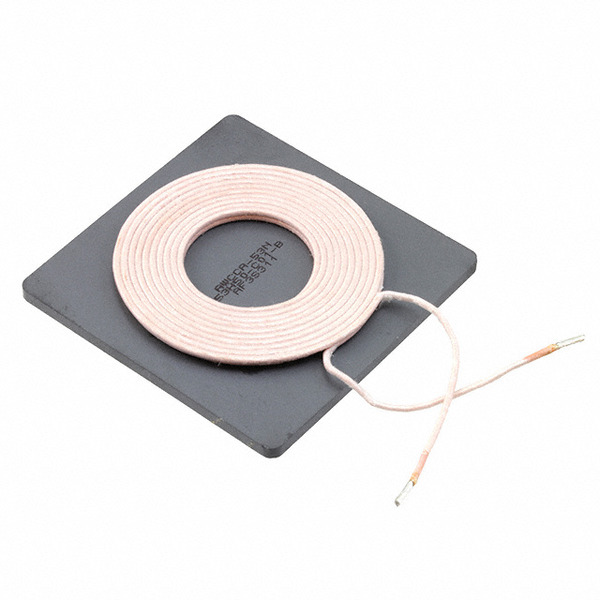

AWCCA-53N53H50-C01-B
Abracon Corporation
Images are for reference only.
See Product Specifications for product details.
Buy AWCCA-53N53H50-C01-B with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy AWCCA-53N53H50-C01-B with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | AWCCA-53N53H50-C01-B |
|---|---|
| Manufacturer | Abracon Corporation |
| Description | RX TX 1 COIL 1 LAYER 24UH 5.7A |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 100 pcs | 500 pcs | 1000 pcs |
|---|---|---|---|---|---|
| $8.22 | $7.399 | $5.262 | $4.933 | $4.604 | |
Specifications
Data sheet
| Type: | 1 Coil, 1 Layer |
|---|---|
| Tolerance: | ±10% |
| Size / Dimension: | 2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm) |
| Series: | AWCCA-53N53 |
| Q @ Freq: | 170 @ 100kHz |
| Other Names: | 535-12508 |
| Operating Temperature: | -25°C ~ 85°C |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 11 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance: | 24µH |
| Function: | Receiver, Transmitter |
| Frequency - Self Resonant: | 2.8MHz |
| Detailed Description: | 1 Coil, 1 Layer 24µH Wireless Charging Coil Receiver, Transmitter 72 mOhm |
| DC Resistance (DCR): | 72 mOhm |
| Current Rating: | 5.7A |
| Current - Saturation: | 30A |
| Email: | info@cjjhk.com |
Introduce
We can supply AWCCA-53N53H50-C01-B, use the request quote form to request AWCCA-53N53H50-C01-B pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number AWCCA-53N53H50-C01-B.The price and lead time for AWCCA-53N53H50-C01-B depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# AWCCA-53N53H50-C01-B.We look forward to working with you to establish long-term relations of cooperation
