ANT2012LL13R2400A
Pulse Electronics Corporation

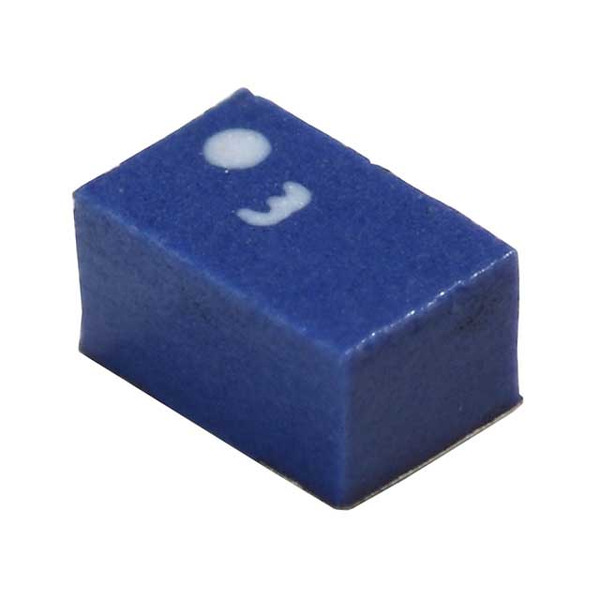

Images are for reference only.
See Product Specifications for product details.
Buy ANT2012LL13R2400A with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ANT2012LL13R2400A with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ANT2012LL13R2400A |
|---|---|
| Manufacturer | Pulse |
| Description | Chip Antenna Linear Single Band 50Ohm 2.45GHz 2.72dBi 3-Pin SMD T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.304 | $0.275 | $0.248 | $0.242 | ||
Specifications
Data sheet
| VSWR: | - |
|---|---|
| Termination: | Solder |
| Series: | - |
| Return Loss: | -22dB |
| Power - Max: | 1W |
| Packaging: | Cut Tape (CT) |
| Other Names: | 311-1534-1 |
| Number of Bands: | 1 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 16 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Height (Max): | 0.039" (1.00mm) |
| Gain: | 2.72dBi |
| Frequency Range: | 2.408GHz ~ 2.492GHz |
| Frequency Group: | UHF (2 GHz ~ 3 GHz) |
| Frequency (Center/Band): | 2.4GHz |
| Features: | - |
| Detailed Description: | 2.4GHz Bluetooth, WLAN, Zigbee™ Chip RF Antenna 2.408GHz ~ 2.492GHz 2.72dBi Solder Surface Mount |
| Applications: | Bluetooth, WLAN, Zigbee™ |
| Antenna Type: | Chip |
| Email: | info@cjjhk.com |
Introduce
We can supply ANT2012LL13R2400A, use the request quote form to request ANT2012LL13R2400A pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ANT2012LL13R2400A.The price and lead time for ANT2012LL13R2400A depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ANT2012LL13R2400A.We look forward to working with you to establish long-term relations of cooperation
