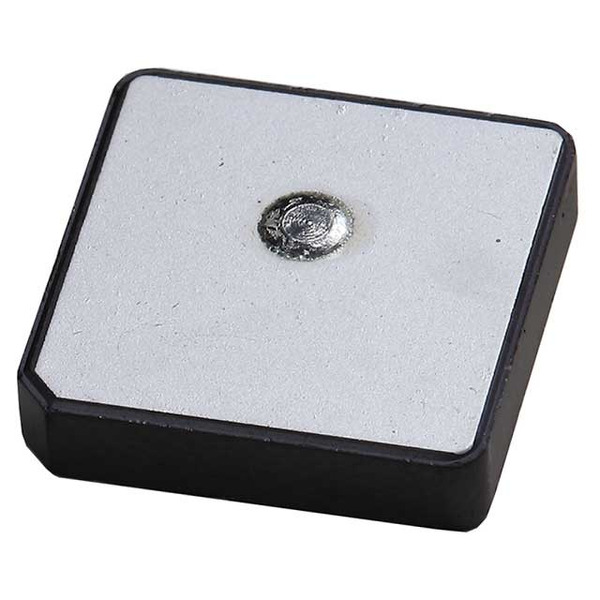

ANT1818B00DT1516S
Yageo
Images are for reference only.
See Product Specifications for product details.
Buy ANT1818B00DT1516S with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy ANT1818B00DT1516S with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | ANT1818B00DT1516S |
|---|---|
| Manufacturer | Yageo |
| Description | RF ANT 1.575/1.602GHZ CER PATCH |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 1 pcs | 10 pcs | 25 pcs | 100 pcs | 300 pcs |
|---|---|---|---|---|---|
| $2.44 | $2.202 | $1.966 | $1.769 | $1.573 | |
| 600 pcs | 1200 pcs | 2700 pcs | 5100 pcs | ||
| $1.376 | $1.14 | $1.062 | $1.022 | ||
Specifications
Data sheet
| VSWR: | 2 |
|---|---|
| Termination: | Pin |
| Series: | - |
| Return Loss: | -26.080dB, -26.781dB |
| Packaging: | Tray |
| Other Names: | 311-1532 ANT1818B00DT1516A CAN43134240D1561B |
| Number of Bands: | 2 |
| Mounting Type: | Adhesive |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 18 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Ingress Protection: | - |
| Height (Max): | 0.157" (4.00mm) |
| Gain: | 2.65dBi, 2.79dBi |
| Frequency Range: | 1.575GHz ~ 1.606GHz |
| Frequency Group: | UHF (1 GHz ~ 2 GHz) |
| Frequency (Center/Band): | 1.575GHz, 1.602GHz |
| Features: | - |
| Detailed Description: | 1.575GHz, 1.602GHz GLONASS, GPS Ceramic Patch RF Antenna 1.575GHz ~ 1.606GHz 2.65dBi, 2.79dBi Pin Adhesive |
| Applications: | GLONASS, GPS |
| Antenna Type: | Ceramic Patch |
| Email: | info@cjjhk.com |
Introduce
We can supply ANT1818B00DT1516S, use the request quote form to request ANT1818B00DT1516S pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number ANT1818B00DT1516S.The price and lead time for ANT1818B00DT1516S depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# ANT1818B00DT1516S.We look forward to working with you to establish long-term relations of cooperation
