744273102

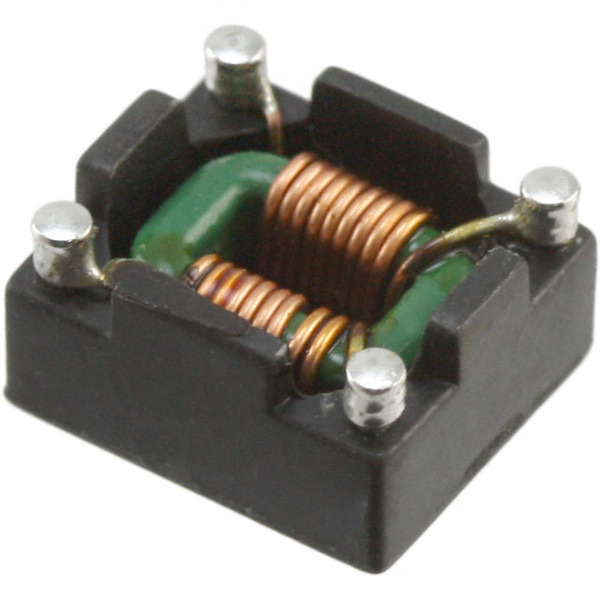

Images are for reference only.
See Product Specifications for product details.
Buy 744273102 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 744273102 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 744273102 |
|---|---|
| Manufacturer | Wurth Elektronik |
| Description | Common Mode Chokes Dual 11uH 1kOhm 100kHz 2.5A 30mOhm DCR SMD T/R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $2.846 | $2.569 | $2.317 | $2.267 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 80V |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.374" L x 0.327" W (9.50mm x 8.30mm) |
| Series: | WE-SL5 HC |
| Ratings: | - |
| Packaging: | Tape & Reel (TR) |
| Package / Case: | Horizontal, 4 PC Pad |
| Other Names: | 732-2960-2 |
| Operating Temperature: | -40°C ~ 125°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 10 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance @ Frequency: | 11µH @ 100kHz |
| Impedance @ Frequency: | 1 kOhms @ 100MHz |
| Height (Max): | 0.209" (5.30mm) |
| Filter Type: | Signal Line |
| Features: | - |
| Detailed Description: | 11µH @ 100kHz 2 Line Common Mode Choke Surface Mount 1 kOhms @ 100MHz 2.5A DCR 30 mOhm |
| DC Resistance (DCR) (Max): | 30 mOhm |
| Current Rating (Max): | 2.5A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 744273102, use the request quote form to request 744273102 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 744273102.The price and lead time for 744273102 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 744273102.We look forward to working with you to establish long-term relations of cooperation
