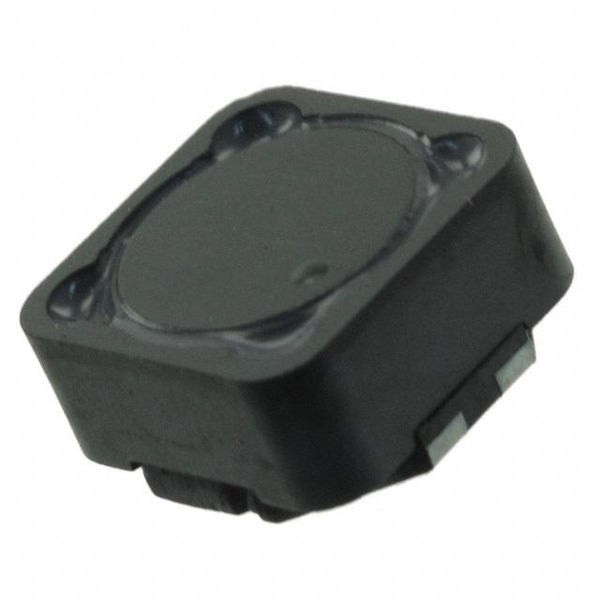

744282010
Images are for reference only.
See Product Specifications for product details.
Buy 744282010 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 744282010 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 744282010 |
|---|---|
| Manufacturer | Wurth Elektronik |
| Description | WE-SCC Series; Wire-wound SMD Inductor with Ferrite Core; 1 H |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $2.73 | $2.464 | $2.223 | $2.174 | ||
Specifications
Data sheet
| Voltage Rating - DC: | 80V |
|---|---|
| Voltage Rating - AC: | - |
| Size / Dimension: | 0.492" L x 0.492" W (12.50mm x 12.50mm) |
| Series: | WE-SCC |
| Ratings: | - |
| Packaging: | Original-Reel® |
| Package / Case: | Horizontal, 4 PC Pad |
| Other Names: | 732-2965-6 |
| Operating Temperature: | -40°C ~ 125°C |
| Number of Lines: | 2 |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 14 Weeks |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Inductance @ Frequency: | 1µH @ 100kHz |
| Impedance @ Frequency: | 1.6 kOhms @ 90MHz |
| Height (Max): | 0.256" (6.50mm) |
| Filter Type: | Signal Line |
| Features: | - |
| Detailed Description: | 1µH @ 100kHz 2 Line Common Mode Choke Surface Mount 1.6 kOhms @ 90MHz 4.75A DCR 12 mOhm |
| DC Resistance (DCR) (Max): | 12 mOhm |
| Current Rating (Max): | 4.75A |
| Approvals: | - |
| Email: | info@cjjhk.com |
Introduce
We can supply 744282010, use the request quote form to request 744282010 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 744282010.The price and lead time for 744282010 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 744282010.We look forward to working with you to establish long-term relations of cooperation
