501594-2611
Affinity Medical Technologies - a Molex company

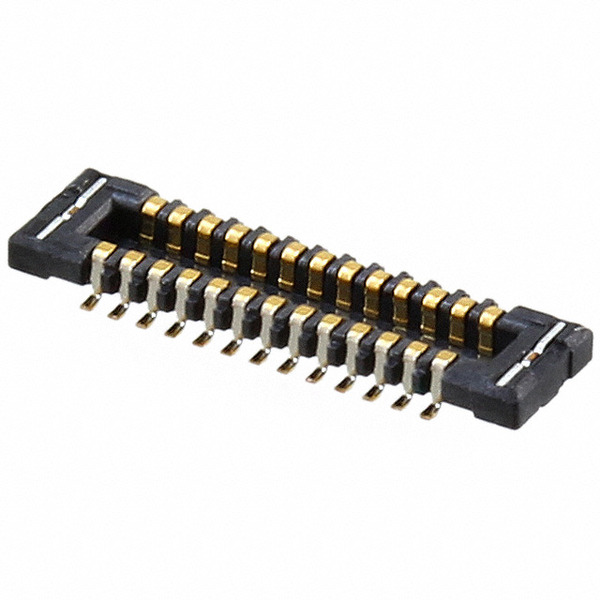

Images are for reference only.
See Product Specifications for product details.
Buy 501594-2611 with confidence from CJJhk.com, 1 Year Warranty
See Product Specifications for product details.
Buy 501594-2611 with confidence from CJJhk.com, 1 Year Warranty
Request a Quote
| Part No. | 501594-2611 |
|---|---|
| Manufacturer | Molex |
| Description | Board Stacking Connector, 26 Contact(S), 2 Row(S), Straight, 0.016 Inch Pitch, Surface Mount |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Reference Price (In US Dollars) | 10 pcs | 100 pcs | 1000 pcs | 10000 pcs | |
|---|---|---|---|---|---|
| $0.668 | $0.603 | $0.544 | $0.532 | ||
Specifications
Data sheet
| Series: | SlimStack™ 501594 |
|---|---|
| RoHS Status: | Tape & Reel (TR) |
| Other Names: | 501594-2611-TR750 5015942611 WM9067TR |
| Number of Rows: | 2 |
| Number of Positions: | 26 |
| Number of Conductors: | 0.016" (0.40mm) |
| Mounting Type: | Surface Mount |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Manufacturer Standard Lead Time: | 8 Weeks |
| Manufacturer Part Number: | 501594-2611 |
| Length - Post (Mating): | 0.9mm |
| Height Above Board: | 0.028" (0.71mm) |
| Features: | Solder Retention |
| Expanded Description: | 26 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold |
| Description: | CONN PLUG 26POS VERT .4MM SL SMD |
| Contact Finish Thickness: | Gold |
| Connector Type: | Plug, Outer Shroud Contacts |
| Cable Diameter: | 3.9µin (0.10µm) |
| Email: | info@cjjhk.com |
Introduce
We can supply 501594-2611, use the request quote form to request 501594-2611 pirce and lead time.CJJ a professional electronic components distributor. With 3+ Million line items of available electronic components can ship in short lead-time, over 250 thousand part numbers of electronic components in stock for immediately delivery, which may include part number 501594-2611.The price and lead time for 501594-2611 depending on the quantity required, availability and warehouse location.Contact us today and our sales representative will provide you price and delivery on Part# 501594-2611.We look forward to working with you to establish long-term relations of cooperation
